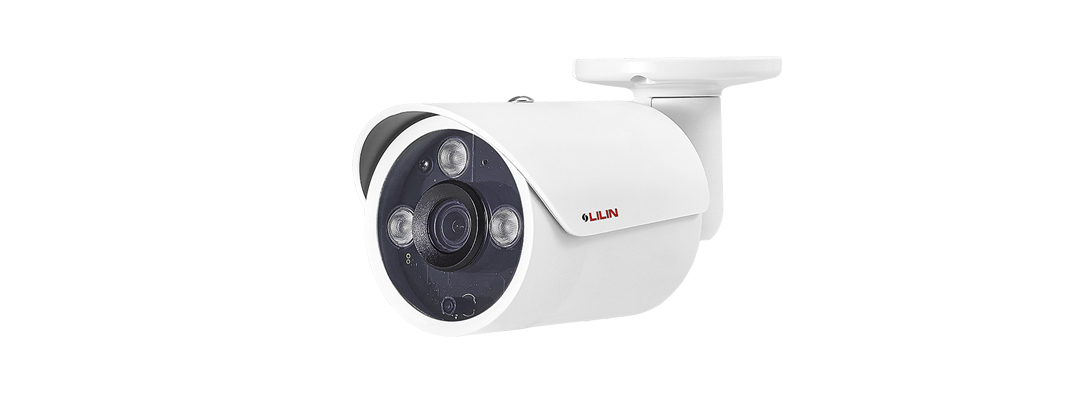

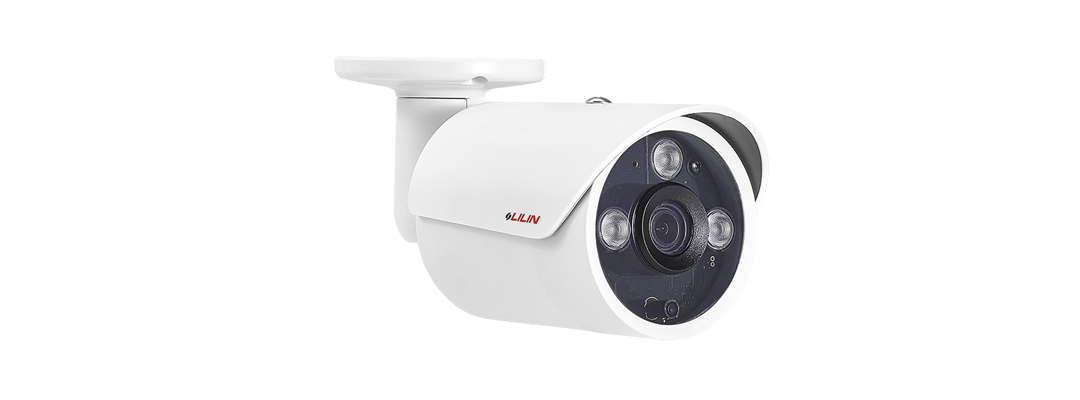

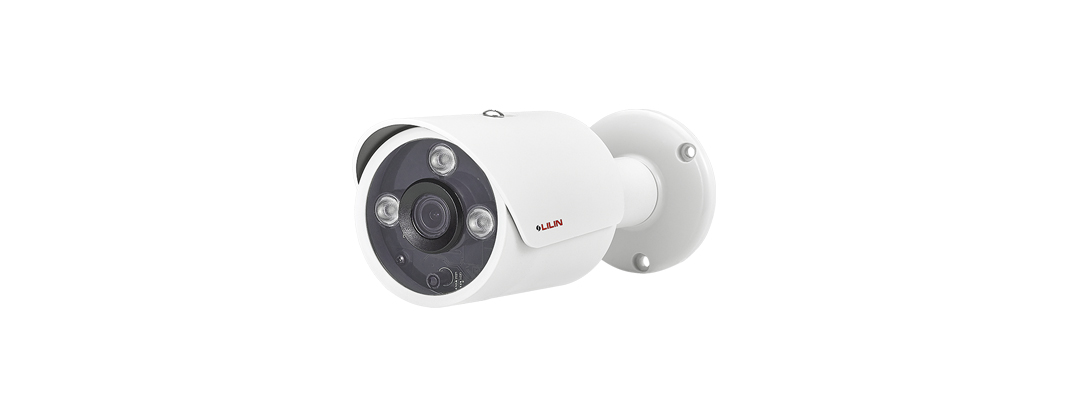

1080P Day & Night Fixed IR Vandal Resistant IP Bullet camera
Model：MR832 (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG triple video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Motion detection alarm function
- High efficiency IR LED, radiant distance up to 16m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- Support ceiling and wall mount
- IP67 rain and dust resistant
- Vandal resistant approve
Discontinued date
- 2018.07.10
Alternative models
- MR302B / MR832B / MR652B
MR832 Outdoor rated HD 30M IR Range Fixed Lens IP Camera in the M series is featuring 1080P at 30fps frame rate, built-in Sense up+ technology to deliver stunning video in low-light conditions. Utilising intelligent image signal processing, 2D WDR function, ePTZ, Region of Interest (ROI), AGC control,and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The IP67-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Support with PoE, privacy mask, White balance, and minimum illumination 0.15 Lux at F2.0 Low Light Mode.
Model
MR832 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue MR832 | 2020-02-07 | 1,231KB | |
| A&E | A&E MR832 | 2019-05-02 | 527KB | |
| Manual | M, ZMR, Pro, L and Covert Series IP Camera User Manual | 2019-04-16 | 3,000KB | |
| Installation Guide | Installation Guide LR832 / MR832 / MR832B | 2018-05-16 | 1,346KB |
-
