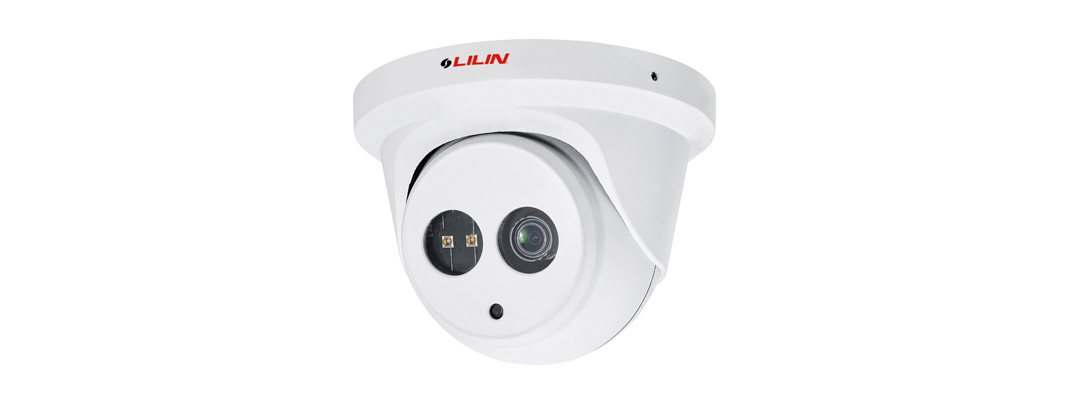

1080P Day & Night Fixed IR Vandal Resistant IP Dome Camera

Model:MR652B (Limited stock)

  • Full HD 2 megapixel CMOS image sensor
  • 1080P True H.264 AVC High Profile video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • Smart H.264 supported
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital PTZ supported Tampering / Motion detection alarm function
  • High efficiency IR LED, radiant distance up to 30m
  • Day & Night (IR cut removable)
  • ONVIF Profile S supported
  • IP67 rain and dust resistant
  • Vandal resistant approve

Alternative models

  • MR6522

MR652B is a day & night 2MP Dome IR IP camera designed for a range of environments demanding high security such as critical infrastructure, factory, retail, transportation, residential and hotel.

It features a full HD 2.0 megapixel CMOS image sensor. The camera has built-in IR-cut filter which allows clearer images at day and night operations even in the low lux condition. The high efficiency IR LED radiant distance can extend up to 30m.

Supported with privacy mask, 3D noise reduction, 2D WDR function, and HDR function up to 100dB, MR652B ensures to deliver a clear and detailed image to the users.

Model

MR652B (Limited stock)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Installation Guide Installation Guide MR652B 2020-10-12 2,197KB
Firmware Firmware Version : 4.2.92.9220 , For Model: MR832B, MR652B, MR302B, MR632B 2020-09-24 19,427KB
Manual M and ZMR Series User Manual 2020-05-05 3,348KB
Catalogue Catalogue MR652B 2020-02-06 1,297KB
A&E A&E MR652B 2019-05-02 551KB
Application Note How to upgrade IP camera to P2P connection for LILIN camera 2019-02-26 566KB
