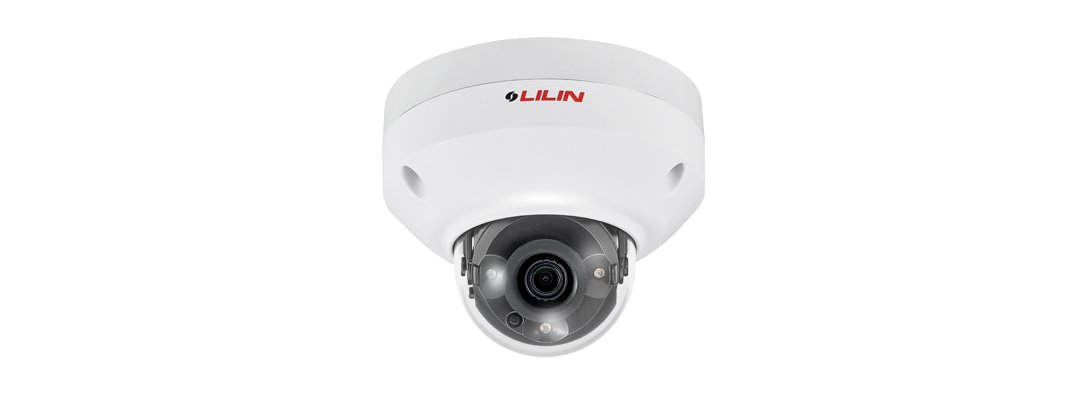

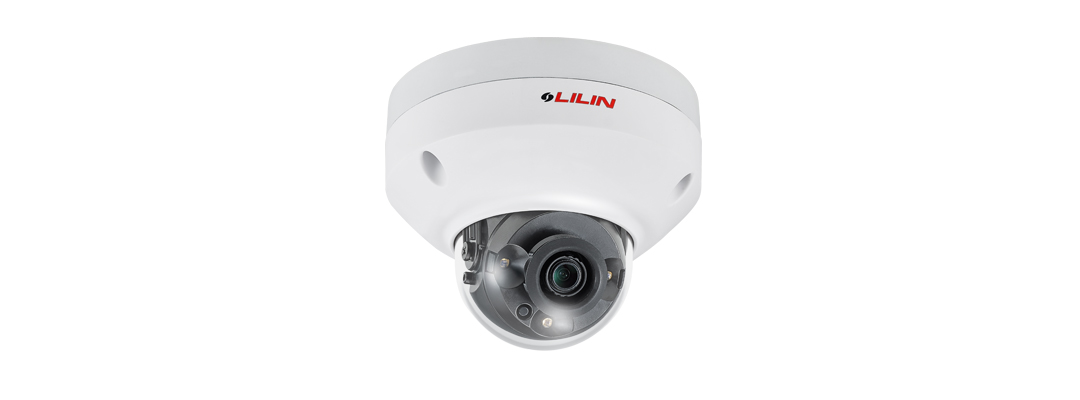

1080P Day & Night Fixed IR Vandal Resistant IP Dome Camera
Model：MR632B (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- 3-Axis construction
- ONVIF Profile S supported
- IP67 rain and dust resistant
- Vandal resistant approve
Discontinued date
- 2021.01.31
Alternative models
- M series of H264 or other H265 series
MR632B is a day & night 2MP Dome IR IP camera designed for a range of environments demanding high security such as critical infrastructure, factory, retail, transportation, residential and hotel.
It features a full HD 2.0 megapixel CMOS image sensor. The camera has built-in IR-cut filter which allows clearer images at day and night operations even in the low lux condition. The high efficiency IR LED radiant distance can extend up to 30m.
Supported with privacy mask, 3D noise reduction, 2D WDR function, MR632B ensures to deliver a clear and detailed image to the users.
Model
MR632B (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide MR632B | 2020-10-08 | 2,888KB | |
| Firmware | Firmware Version : 4.2.92.9220 , For Model： MR832B, MR652B, MR302B, MR632B | 2020-09-24 | 19,427KB | |
| Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
| Catalogue | Catalogue MR632B | 2020-02-06 | 1,830KB | |
| A&E | A&E MR632B | 2019-05-02 | 559KB | |
| Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB |
-
