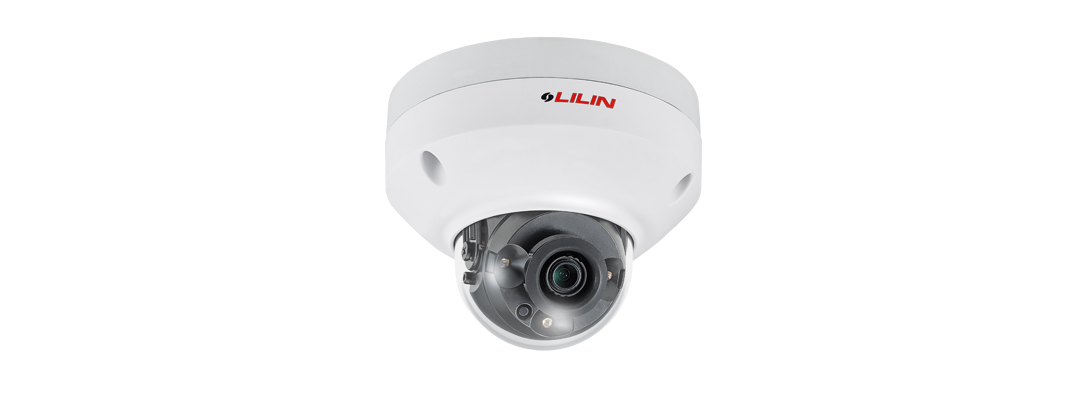

1080P Day & Night Fixed IR Vandal Resistant IP Dome Camera
Model：MR632
- Full HD 2 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- 3-Axis construction
- ONVIF Profile S supported
- IP67 rain and dust resistant
- Vandal resistant approve
Discontinued date
- 2018.11.11
Alternative models
- MR632B
MR632 HD 30M IR Range Fixed Dome IP
Camera in the M series features 1080p resolution at 30 frames per second,
built-in Sense up+ technology to deliver stunning video in low-light
conditions. Utilizing IP67,
HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers
the ultimate low-light image with infrared. The support of PoE, privacy mask,
and white balance, as well as the minimum illumination of 0.15 Lux at F2.0 will
satisfy multiple applications.
Model
MR632
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
| Catalogue | Catalogue MR632 | 2020-02-05 | 1,628KB | |
| A&E | A&E MR632 | 2019-05-02 | 300KB | |
| Installation Guide | Installation Guide LR632 / MR632 / MR632B | 2018-05-16 | 1,385KB |
-
