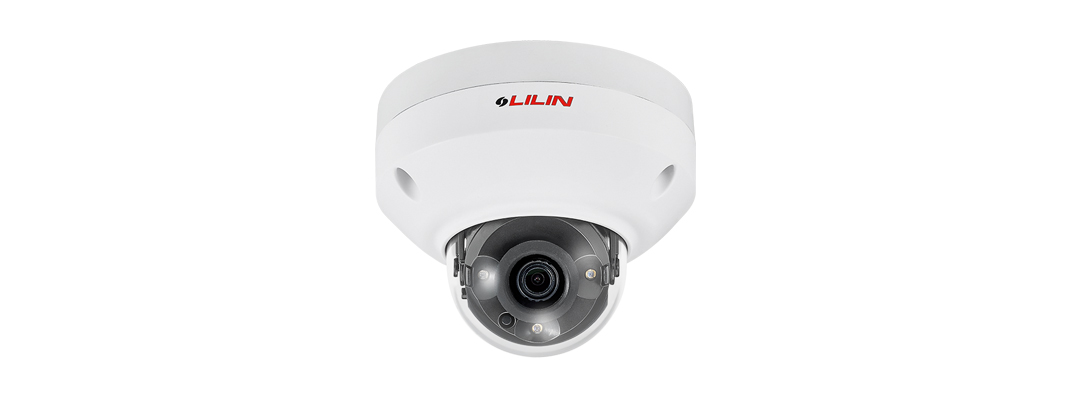

1080P Day & Night Fixed IR IP Dome Camera
Model：MR3022 (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- 3-Axis construction
- ONVIF Profile S supported
Discontinued date
- 2021.01.31
Alternative models
- M series of H264 or other H265 series
As with all M series cameras, MR3022 HD 30M-Range IR Fixed Dome IP Camera in the M series features 1080p at 30 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing intelligent image signal processing, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The support of PoE, privacy masking, white balance, as well as the minimum illumination 0.15 Lux at F2.0 can certainly satisfy multiple applications.
Model
MR3022 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Firmware | Firmware Version : 4.2.92.9220 , For Model： MR6322, MR3022, MR2922X, MR3022A, MR6322A, MR2922AX, MR6422X, MG1022, MG1022, MR6822, MR6522 , MR6522E2 | 2020-09-24 | 19,434KB | |
| Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
| Catalogue | Catalogue MR3022 | 2020-02-11 | 1,819KB | |
| Installation Guide | Installation Guide MR3022 / MR3042 | 2019-07-12 | 1,498KB | |
| Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB | |
| A&E | A&E MR3022 | 2018-04-13 | 166KB |
-
