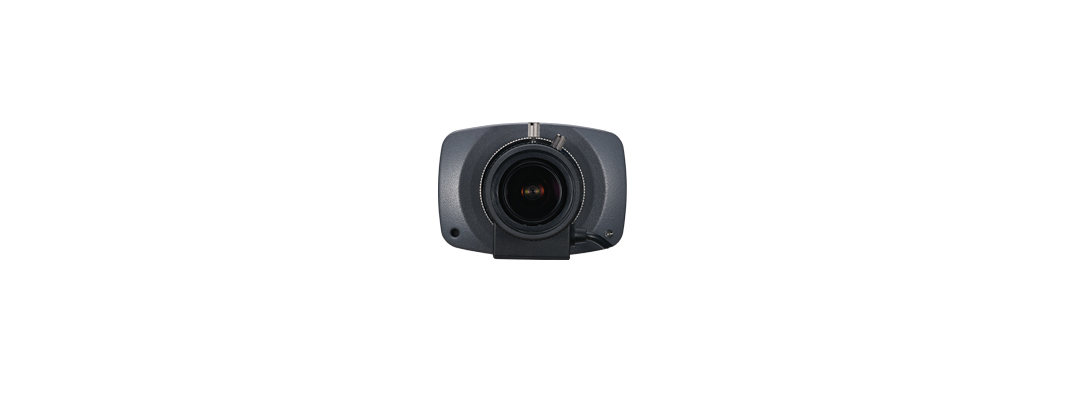

1080P Day & Night Fixed IP Box Camera
Model：MG1022
- Full HD 2 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- 2D WDR function
- Day & Night (IR cut removable)
- Built-in highly sensitive microphone
- ONVIF Profile S supported
The MG1022 incorporates Sense up+, a unique
technology that successfully delivers stunning video in
low-light conditions. Utilizing intelligent image signal
processing, AGC control, and 3D Noise Reduction, this
model successfully delivers the ultimate low-light image
without motion blur. Measuring less than 110mm in length,
this latest addition to the series provides an internal
solution for multiple applications.
Model
MG1022
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | MG1022, P2G1022, P2G1022X and P2G1052 Installation Guide | 2021-08-23 | 7,846KB | |
| Firmware | Firmware Version : 4.2.92.9220 , For Model： MR6322, MR3022, MR2922X, MR3022A, MR6322A, MR2922AX, MR6422X, MG1022, MG1022, MR6822, MR6522 , MR6522E2 | 2020-09-24 | 19,434KB | |
| Manual | M and ZMR Series User Manual | 2020-05-05 | 3,348KB | |
| Catalogue | Catalogue-MG1022 | 2020-02-15 | 1,796KB | |
| Application Note | How to upgrade IP camera to P2P connection for LILIN camera | 2019-02-26 | 566KB | |
| A&E | A&E MG1022 | 2018-04-13 | 169KB |
-
