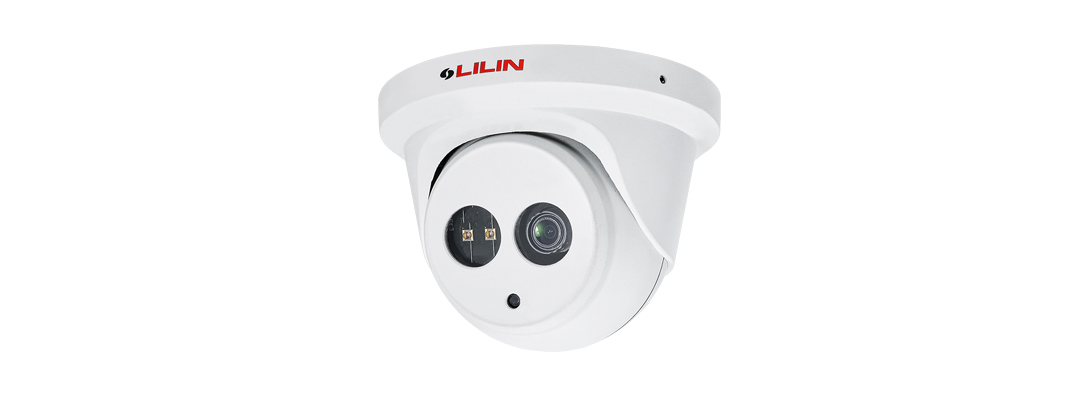

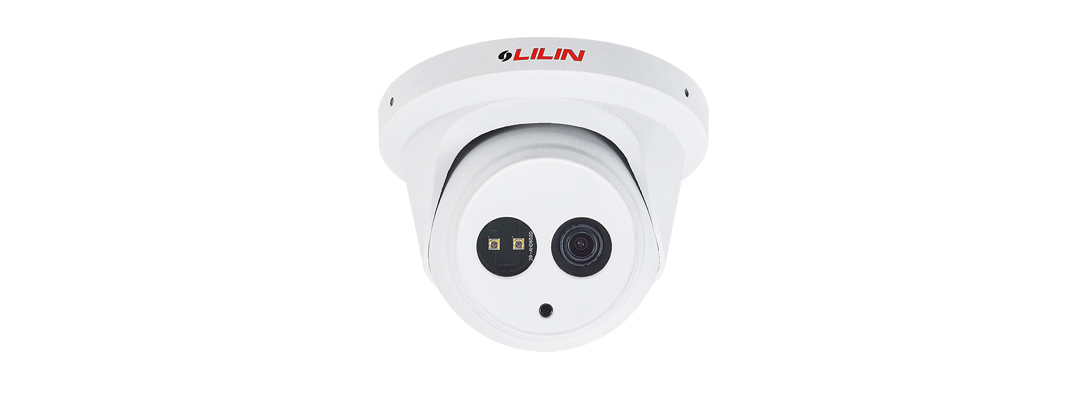

1080P Day & Night Fixed IR Vandal Resistant IP Dome Camera
Model：LR652
- Outdoor Dome Camera
- IR cut filter for day/night operations
- IP67 rain and dust resistant
- 30-meter infrared night vision
- 1080p resolution @ 15 FPS
LR652 HD 30M-Range IR Fixed Dome IP Camera in the L series features 1080p resolution at 15 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing IP67, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image with infrared. The support of PoE, privacy mask, and white balance, as well as the minimum illumination of 0.15 Lux at F2.0 will satisfy multiple applications.
Model
LR652
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Installation Guide | Installation Guide LR652 | 2020-10-12 | 2,197KB | |
| Manual | Pro, L and Covert Series User Manual | 2020-05-05 | 3,327KB | |
| Catalogue | 產品型錄 LR652 | 2018-04-26 | 1,022KB | |
| Firmware | Firmware 1.4.122 | 2018-03-20 | 22,383KB | |
| Manual | PTZ Indoor Camera Installation Guide | 2015-12-03 | 39,105KB |
-
