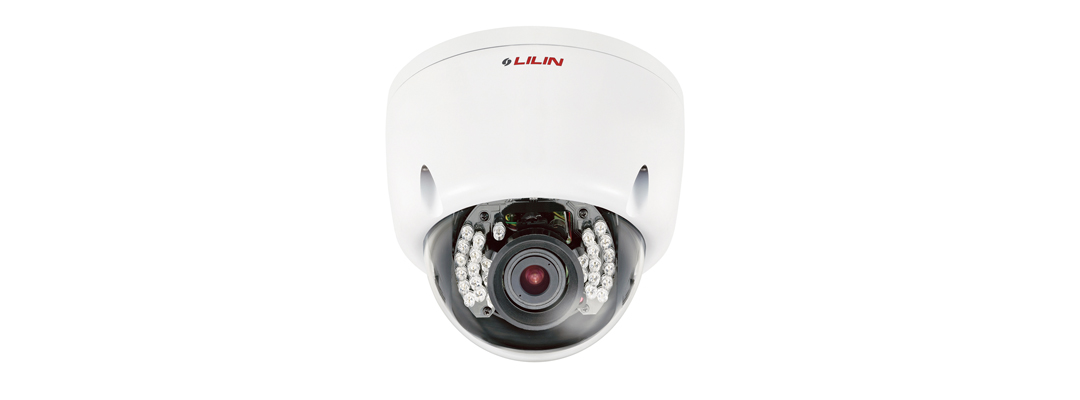

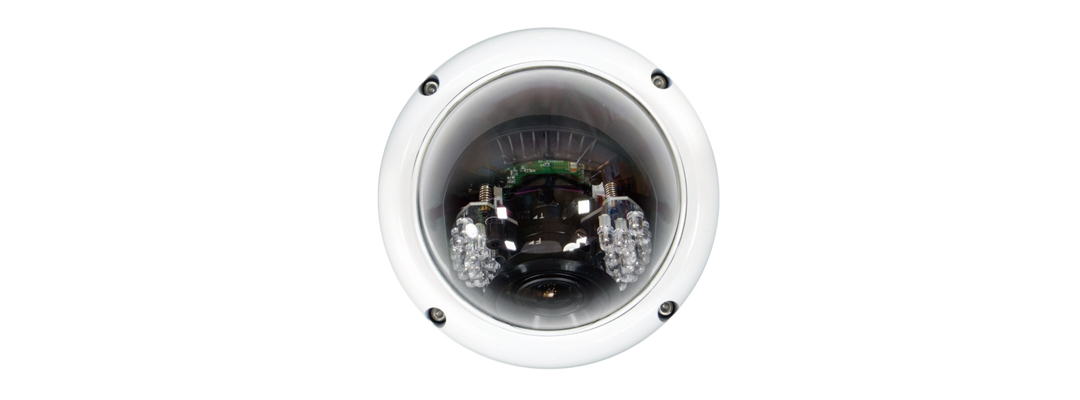

1080P Day & Night Vari-Focal IR Vandal Resistant IP Dome Camera

Model:LR6122EX3.6 (Discontinued)

  • Full HD 2 megapixel CMOS image sensor
  • True H.264 AVC/MPEG-4 part 10
  • H.264 and Motion JPEG triple video streaming
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital zoom supported
  • Audio / Motion detection alarm function
  • Impact Resistant Polycarbonate Dome Cover
  • High efficiency IR LED, radiant distance up to 25m
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF supported

Discontinued date

  • 2019.05.06

Alternative models

  • M series / ZM series
  • MR8322 / MR6422X

IK10 vandal proof dome LR6122X in the L series is featuring built-in Sense Up+ technology to deliver stunning video in low-light conditions. Utilizing intelligent image signal processing, 2D WDR function, AGC control, and 3D noise reduction, the combination successfully delivers the ultimate low-light image without motion blur. The IP67-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Support with PoE, privacy mask, white balance, and minimum illumination 0.05 Lux at F1.4 Low Light Mode.

With built-in IR-cut filter, white balance, back light compensation, and IVS features such as audio and motion detection to deliver quality videos.

Model

LR6122EX3.6 (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Manual Pro-L-Covert Series User Manual 2020-04-13 2,260KB
Catalogue Catalogue LR6122X 2017-10-23 1,126KB
A&E A&E LR6122X 2015-09-17 228KB
Manual LILIN IP Camera Start Guide 2015-05-18 1,503KB
Installation Guide Installation Guide IPR6132ESX / IPD6132ESX / IPR6122ESX / IPD6122ESX / LR6122EX / LD6122EX / ZR6122EX / ZD6122EX 2014-07-29 2,202KB
Image High-Resolution Image 5,485KB
