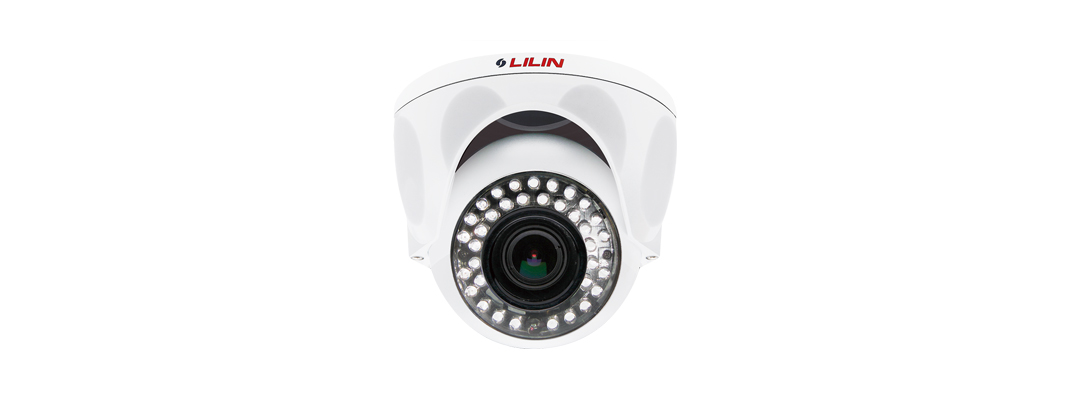

Day & Night 1080P HD Vandal Resistant Dome IR IP Camera
Model:LR6022EX3.6 (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10
- H.264 and Motion JPEG triple video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital zoom supported
- Motion detection alarm function
- High efficiency IR LED, radiant distance up to 25m
- Innovatory external adjustment with waterproof for zoom and focus of Vari-Focal lens
- Day & Night (IR cut removable)
- ONVIF supported
Discontinued date
- 2019.01.31
Alternative models
- MR8322 / MR6422X
IK7 vandal proof dome LR6022X in the L series is featuring built-in Sense Up+ technology to deliver stunning video in low-light conditions. Utilizing intelligent image signal processing, 2D WDR function, AGC control, and 3D noise reduction, the combination successfully delivers the ultimate low-light image without motion blur. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Support with PoE, privacy mask, white balance, and minimum illumination 0.05 Lux at F1.4 Low Light Mode.
With built-in IR-cut filter, white balance, back light compensation, and IVS features such as audio and motion detection to deliver quality videos.
Model
LR6022EX3.6 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Manual | M, ZMR, Pro, L and Covert Series IP Camera User Manual | 2019-04-16 | 3,000KB | |
Catalogue | Catalogue LR6022 | 2018-04-26 | 2,324KB | |
A&E | A&E LR6022 | 2015-09-17 | 177KB | |
Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
Image | High-Resolution Image | 2,177KB |
-
