Products

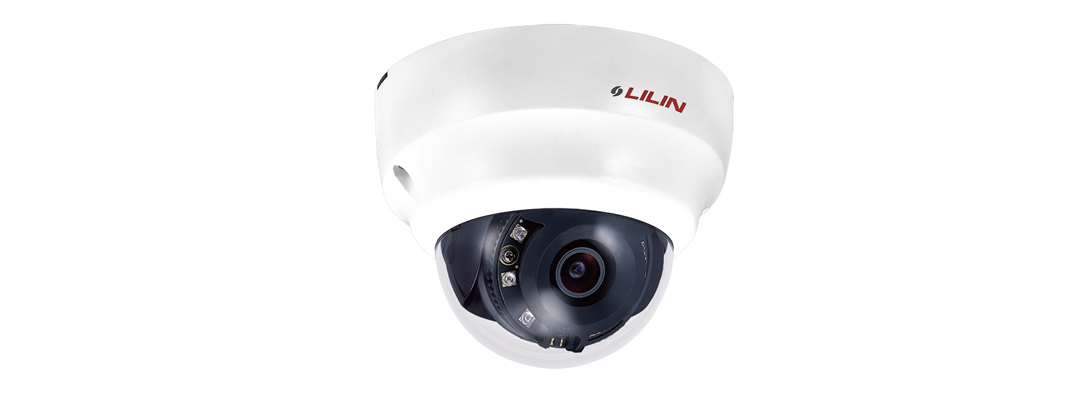

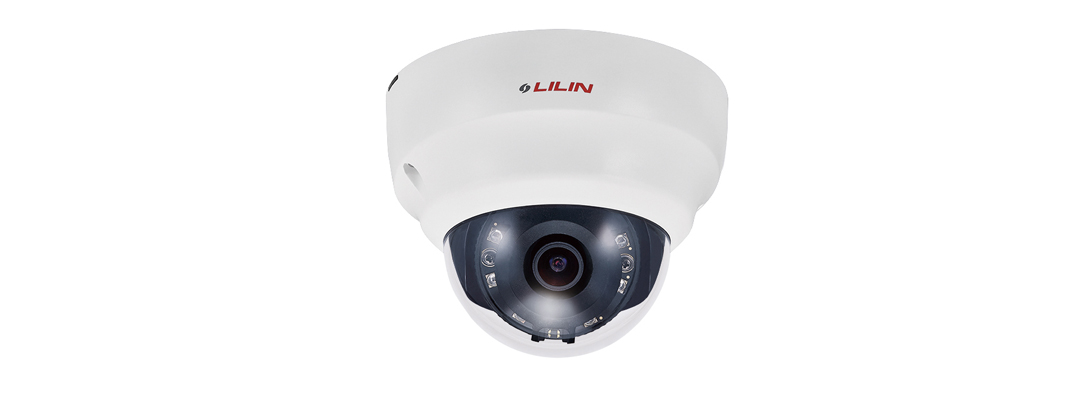

1080P Day & Night Fixed IR IP Dome Camera
Model：LR312
- IR IP Dome Camera
- IR cut filter for day/night operations
- Back light compensation
- 30-meter infrared night vision
- 1080p resolution @ 15fps
- Digital zoom supported
The L series cameras are your economical choice for small and medium sized businesses. LR312 HD 30M IR Range Fixed Lens Dome IP Camera in the L series is featuring 1080P at 15fps, built-in Sense up+ technology to deliver stunning video in low-light conditions. Utilising intelligent image signal processing, 2D WDR function, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. Support with PoE, privacy mask, digital zoom, White balance, and minimum illumination 0.15 Lux at F2.0 Low Light Mode
Model
LR312
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | Pro, L and Covert Series User Manual | 2020-05-05 | 3,327KB | |
| Catalogue | Catalogue LR312 | 2017-10-24 | 705KB | |
| Installation Guide | Installation Guide LR312 / MR312 | 2016-07-03 | 1,076KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB |
-
