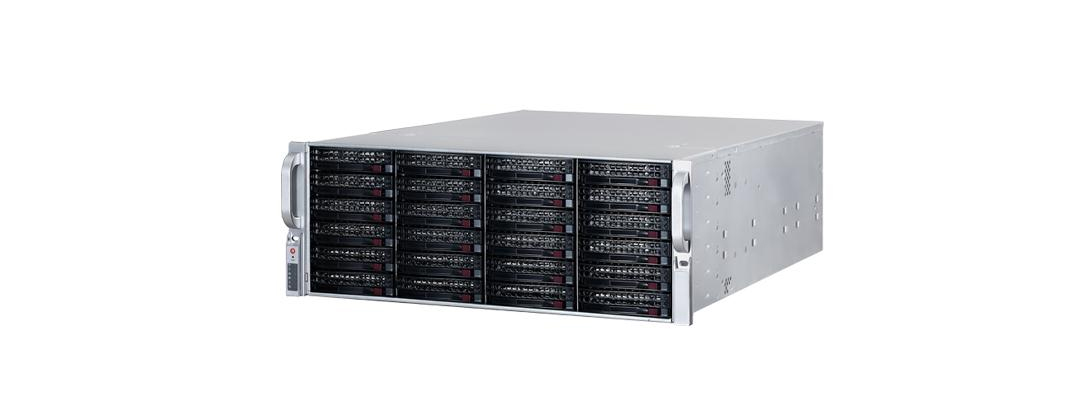

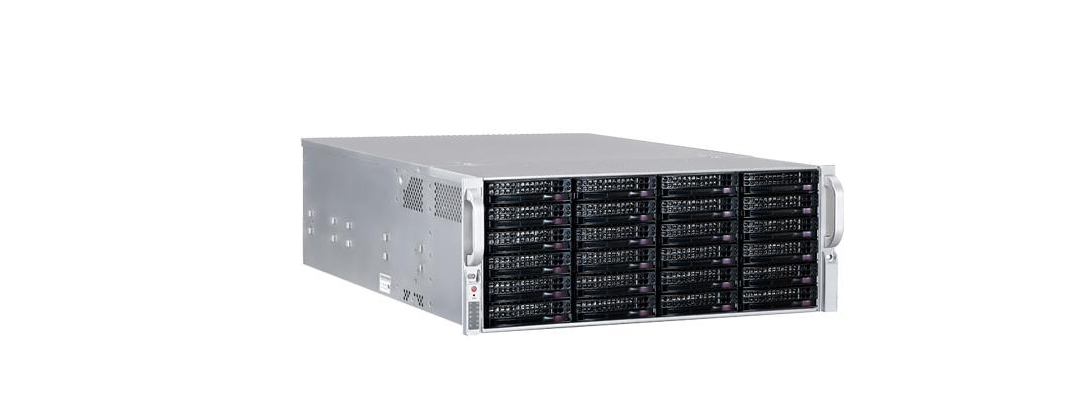

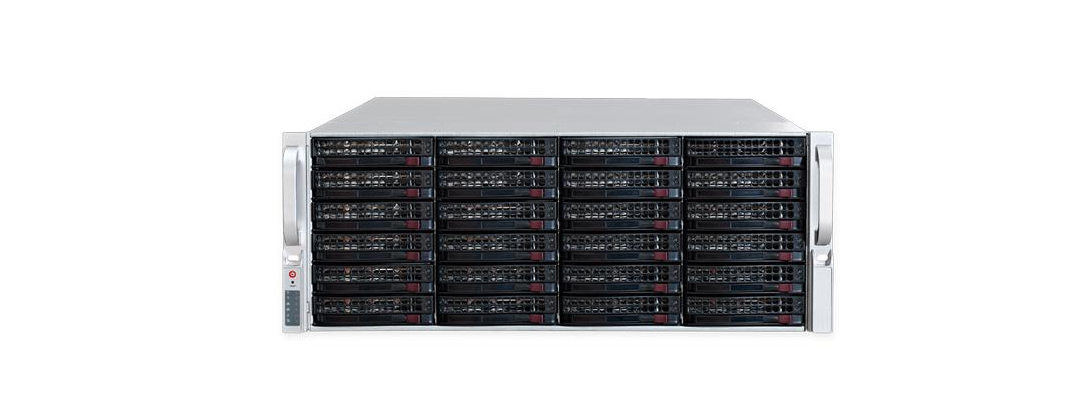

24-Bay HDD Storage Expansion
Model：JBOD1024 (Discontinued)
- 4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 2x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, , high availability or high redundancy requirements
- 920W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
Discontinued date
- 2021.08.31
The JBOD1024 JBOD (just a bunch of disks ) storage enclosure is designed to scale your LILIN NAV1108 / NAV1072 server storage expansion capacity. In a 4U form factor, it offers 24-hour hot-swappable 3.5" SAS/SATA hard drive bays, without compromising superior cooling capabilities.This JOBD1024model offers two expanders for high availability. Just install hard drives and use an external SAS cable and connect to a host bus adapter (HBA) on the head node server. The storage capacity can be expanded instantly and reduce the initial investment.
Model
JBOD1024 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-JBOD1024 | 2016-12-06 | 310KB | |
| Manual | JBOD1024 Instruction Manual | 2016-06-30 | 14,036KB | |
| Image | High-Resolution Image | 262KB |
