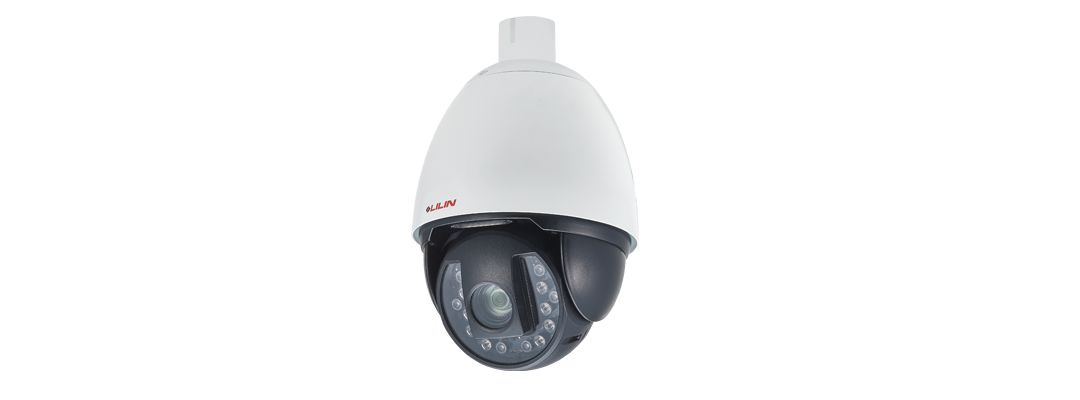

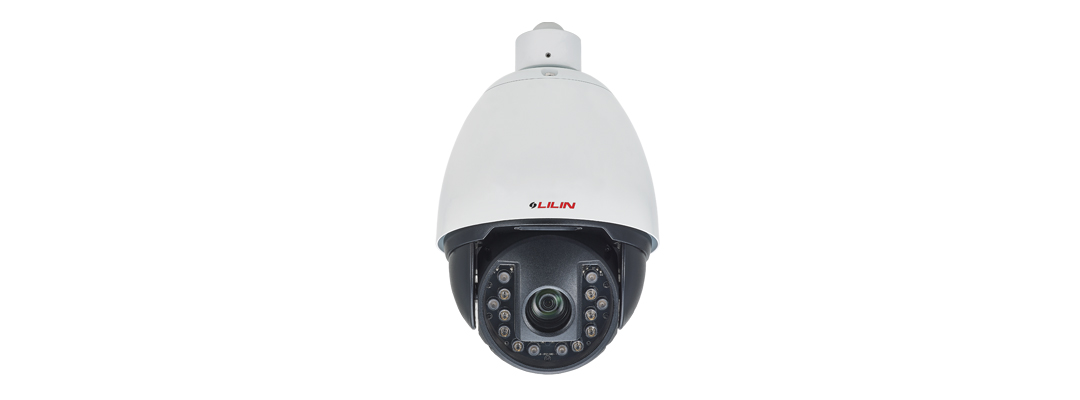

20X Day/Night 2-megapixel HD Infrared PTZ Camera (End of Production)

Model:IRS1204 (Discontinued) / IRS1208 (Discontinued)

  • Outdoor PTZ camera
  • 20X optical zoom
  • IP66 rain and dust resistant
  • 150-metre infrared night vision
  • 1080p resolution
  • Wide Dynamic Range
  • H.264 and Motion JPEG multi-profile video streaming

Discontinued date

  • 2018.06.26

Alternative models

  • PSR5024EX20/30

The IRS1204 / IRS1208 are infrared PTZ options with built-in IR LEDs that are able to see in almost complete darkness, providing clear, detailed video clarity at night-time for round-the-clock video surveillance. IR security PTZ – IRS1204 / IRS1208 see at night with IR distance of 150M. The IRS1204 / IRS1208 are indoor/outdoor fitted 20X Day & Night 2MP HD PTZ Dome IR Camera that in compliance with LILIN’s already established PTZ series of cameras. The camera can be powered through AC24V / AC100〜240V. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IRS1204 / IRS1208 capture highlights and shadows simultaneously, eliminating pixilation and smear. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Combine this with digital noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets

Model

IRS1204 (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

Model

IRS1208 (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Catalogue Catalogue-IRS1204 IRS1208 2017-11-03 1,018KB
Firmware Firmware 2.0.42 2016-06-16 18,748KB
Manual HD PTZ Dome IR IP Camera User Manual 2015-12-03 3,775KB
Manual IR PTZ Outdoor camera Instruction Manual 2015-09-10 4,841KB
Image High-Resolution Image 7,605KB
