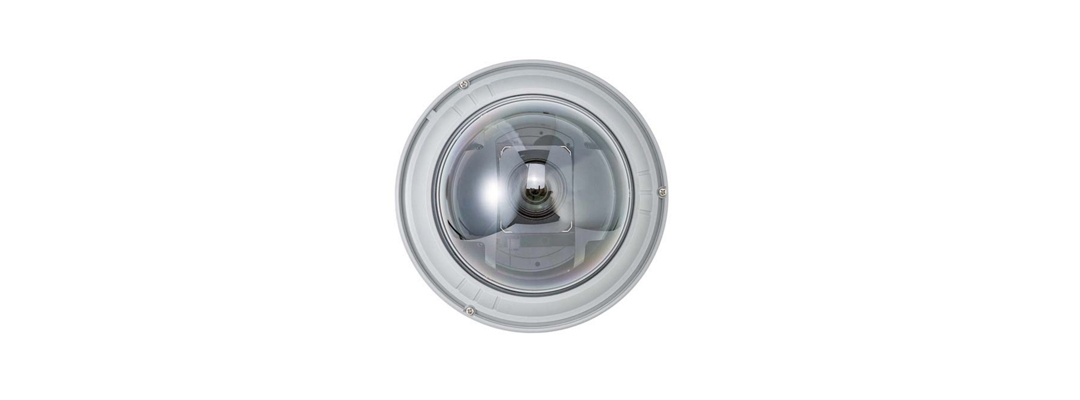

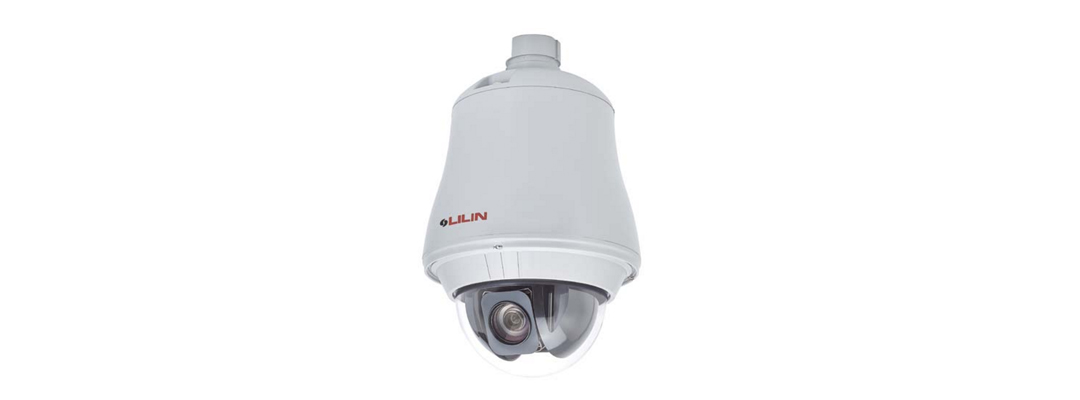

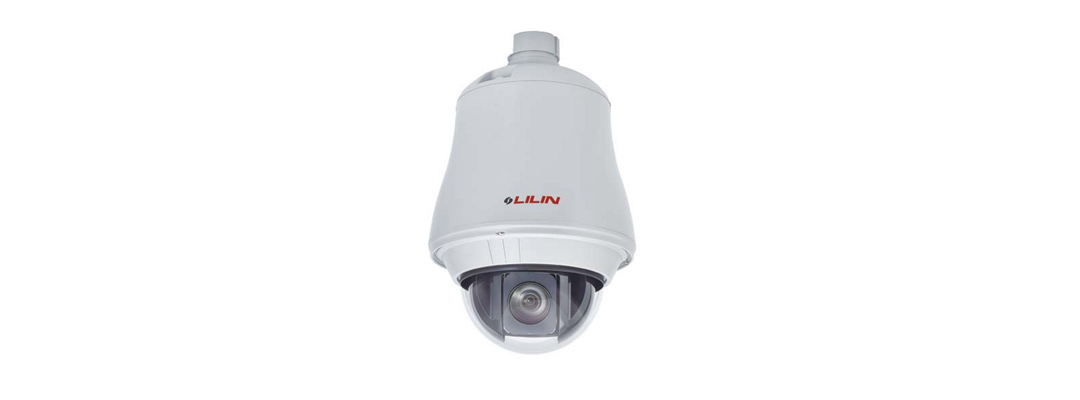

22X HD Megapixel Day & Night WDR Speed Dome IP Camera
Model:IPS6224E (Discontinued) / IPS6228E (Discontinued)
- 22X Optical Zoom Lens(4.7–103.4mm)
- 10X Digital Zoom
- HD 1.3 megapixel MOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- Wide Dynamic Range
- 3D Digital Noise Reduction
- High Light Compensation
- Digital Image Stabilizer
- 256X Sensitivity Up
- Up to 128 Programmable Preset Positions
- 2-way audio supported
- ONVIF supported
The IPS6224 / IPS6228 is 1080P HD PTZ Dome IP camera. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IPS6224 / IPS6228 captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 22x optical zoom and 10x digital zoom capacity give the IPS6224 / IPS6228 an impressive range.
With a focal length of 4.7-103.4mm and a compact design, the IPS6224 / IPS6228 is ideal for numerous applications. Further features include privacy zones, comprehensive scheduling, 2-way audio, weighted mode, digital PTZ, alarm activation by motion, audio detection, and 6 digital inputs.
Model
IPS6224E (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Model
IPS6228E (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue-IPS6224E 6228E | 2017-03-02 | 1,030KB | |
Firmware | Firmware 1.2.6 | 2014-12-01 | 22,657KB | |
Installation Guide | IPS4184E, IPS4188E, IPS4204E, IPS4208E, IPS4304EA, IPS4308EA, IPS6224E and IPS6228E Installation Guide | 2014-11-13 | 4,262KB | |
Manual | 1080P HD IP PTZ Camera Instruction Manual | 2014-10-03 | 3,894KB |
-
