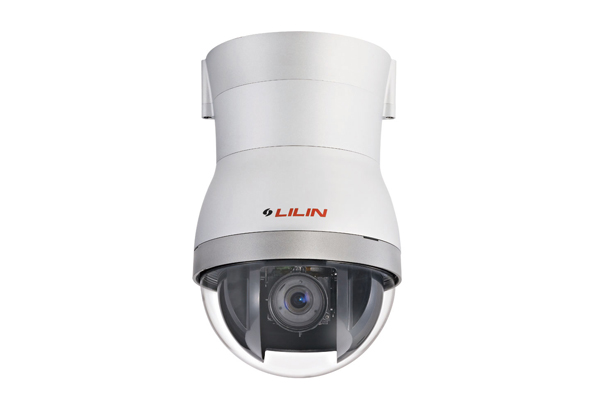

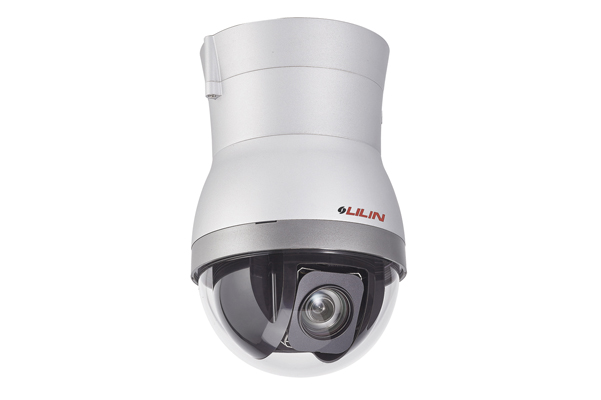

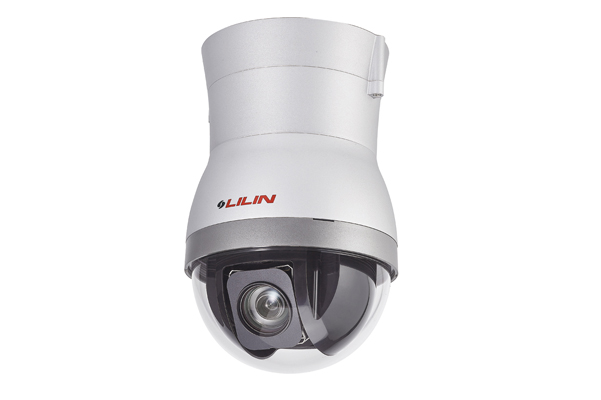

30X Day & Night 1080P HD PTZ Dome IP Camera (Indoor)
Model:IPS5300E (Discontinued)
- 30X Optical Zoom Lens (4.4 − 132mm)
- 12X Digital Zoom
- Electronic Image Stabilization
- Defog
- 16 Privacy Masks
- Wide Dynamic Range
- Digital Noise Reduction
- Sense Up function
- 2-way audio supported
- ONVIF supported
The IPS5300E is 1080P HD PTZ Dome IP camera. The high-speed dome is capable of streaming HD video at up to 30FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IPS5300E captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 30x optical zoom gives the IPS5300E an impressive range. With a focal length of 4.4mm (WIDE)〜132.0mm (TELE), IPS5300E is ideal for numerous applications.
Further features include privacy zones, comprehensive scheduling, 2-way audio, digital PTZ, alarm activation by motion detection. Connecting the cameras to your IP system is simple. Pair them with our NVR Touch series, and the installation wizard, WS Discovery, will locate all IP cameras on the network and generate a snapshot image of each channel. This will help with identification and greatly speed up camera setup.
Model
IPS5300E (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue IPS5300E | 2017-11-02 | 1,181KB | |
Manual | PTZ Indoor Camera Installation Guide | 2015-12-03 | 39,105KB | |
Manual | 1080P HD IP PTZ Camera Instruction Manual | 2014-10-03 | 3,894KB |
-
