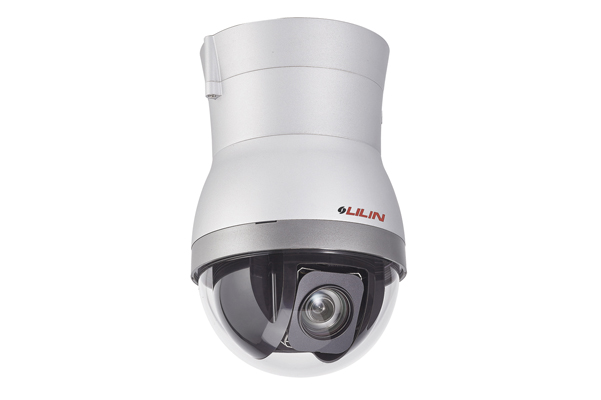

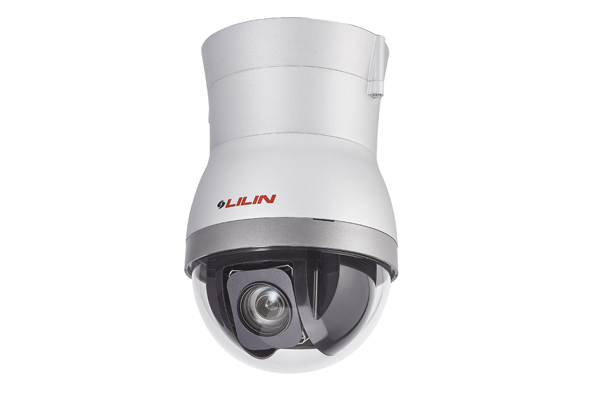

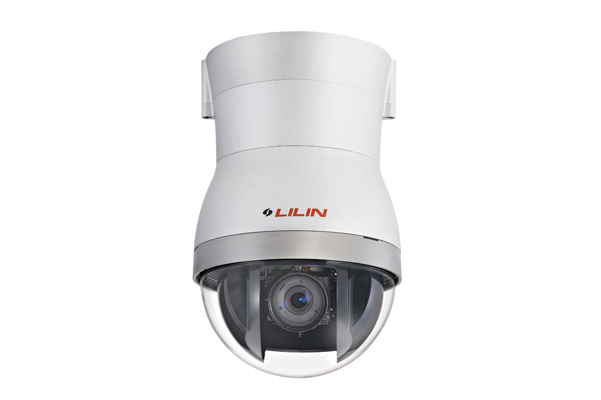

20X Day & Night 30fps Full HD PTZ Dome IP Camera
Model：IPS5204A / IPS5208A
- Pan-tilt-zoom capabilities
- 20X optical zoom
- IR cut filter for day/night operations
- 1080p HD resolution
- Wide Dynamic Range up to 90dB
The IPS5204A / IPS5208A is 1080P Full HD PTZ Dome IP camera. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide dynamic Range (WDR) feature, the IPS5204A / IPS5208A captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D Noise Reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations with a speed range of 0.15°〜360° per second, users can accurately position the camera to identify specific targets. The 20x optical zoom and 16x digital zoom capacity give the IPS5204A / IPS5208A an impressive range. With a focal length of 4.7mm (WIDE)〜94.0mm (TELE), IPS5204A / IPS5208A is ideal for numerous applications.
Model
IPS5204A
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Model
IPS5208A
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Firmware | Firmware Version : 2.10.36.674 , For Model：IPS4204EA/IPS4208EA, IPS4304EA/IPS4308EA, IPS5204A/IPS5208A, IPS5304A/IPS5308A, IPS5200EA, IPS5300EA | 2020-10-07 | 25,707KB | |
| Installation Guide | Installation Guide IPS5204A | 2020-06-30 | 1,878KB | |
| Installation Guide | Installation Guide IPS5208A | 2020-06-30 | 1,878KB | |
| Manual | HD Fast Dome IP Camera Series User Manual | 2020-05-14 | 2,887KB | |
| A&E | A&E IPS5204A | 2019-07-08 | 252KB | |
| A&E | A&E IPS5208A | 2019-07-08 | 252KB | |
| Catalogue | Catalogue IPS5204A IPS5208A | 2019-07-05 | 1,673KB |
-
