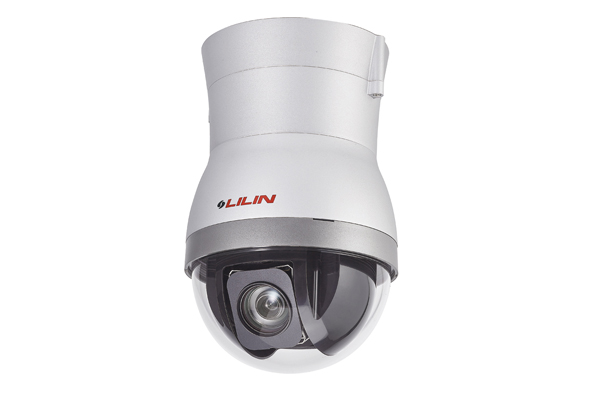

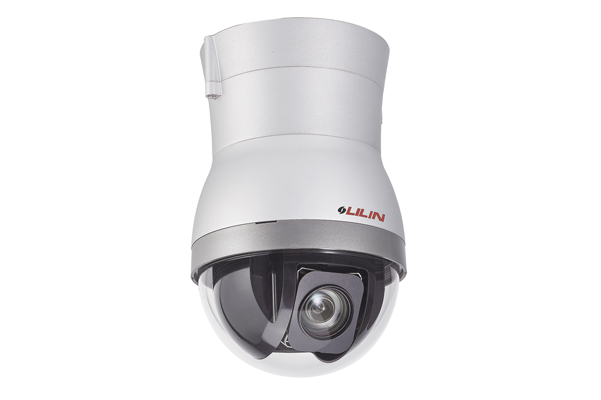

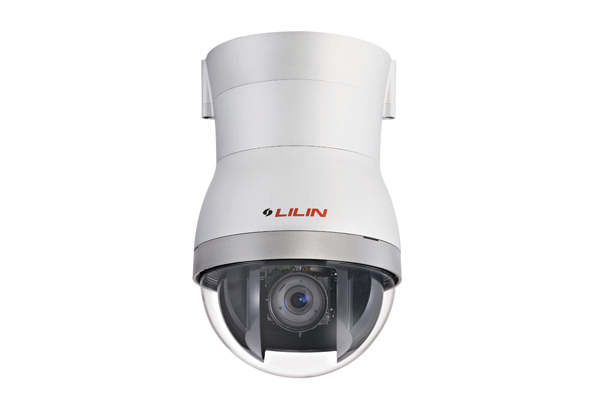

20X Day & Night 30fps Full HD PTZ Dome IP Camera

Model:IPS5200EA

  • Power over Ethernet+
  • Pan-tilt-zoom capabilities
  • 20X optical zoom
  • IR cut filter for day/night operations
  • 1080p HD resolution
  • Wide Dynamic Range up to 90Db

The IPS5200EA is 1080P Full HD PTZ Dome IP camera. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide dynamic Range (WDR) feature, the IPS5200EA captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D Noise Reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations with a speed range of 0.15°〜360° per second, users can accurately position the camera to identify specific targets. The 20x optical zoom and 16x digital zoom capacity give the IPS5200EA an impressive range. The camera can be powered through High Power over Ethernet, which complies with the PoE standard IEEE 802.3at.

Model

IPS5200EA

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Firmware Firmware Version : 2.10.36.674 , For Model:IPS4204EA/IPS4208EA, IPS4304EA/IPS4308EA, IPS5204A/IPS5208A, IPS5304A/IPS5308A, IPS5200EA, IPS5300EA 2020-10-07 25,707KB
Installation Guide Installation Guide IPS5200EA 2020-06-30 1,878KB
Manual HD Fast Dome IP Camera Series User Manual 2020-05-14 2,887KB
A&E A&E IPS5200EA 2019-07-08 252KB
Catalogue Catalogue IPS5200EA 2019-07-05 2,048KB
