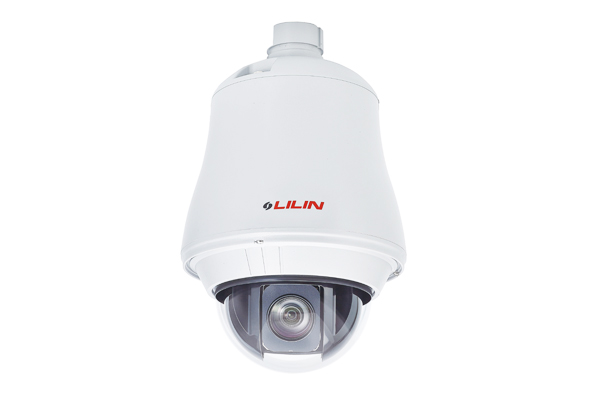

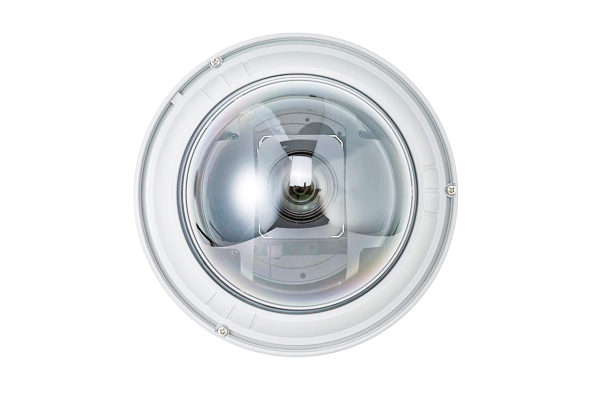

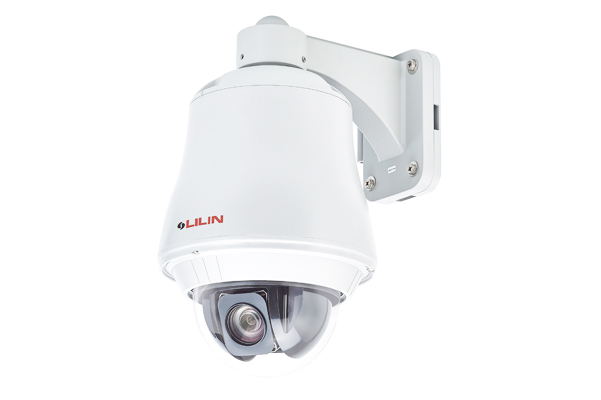

30X Day & Night 2MP Outdoor Vandal PTZ Camera

Model：IPS4304E (Discontinued) / IPS4308E (Discontinued)

Features Description Specifications Downloads Accessories

Outdoor Vandal PTZ camera
30X optical zoom
IP66 rain and dust resistant
IR cut filter for day/night operations
1080p HD resolution
Wide Dynamic Range
IK10 impact resistant

The IPS4304E / IPS4308E is 1080P HD IP PTZ Dome camera. The high-speed dome is capable of streaming HD video at up to 30 FPS. Featuring Wide dynamic Range (WDR) feature, the IPS4304E / IPS4308E captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D Noise Reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 30x optical zoom gives the IPS4304E / IPS4308E an impressive range. With a focal length of 4.4mm-132mm, an IP66 weatherproof rating and a compact design, the IPS4304E / IPS4308E is ideal for numerous applications.

IPS4304E (Discontinued) IPS4308E (Discontinued)

Video performance Power Sensor Certifications Environmental PC requirement

Model

IPS4304E (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

Video performance Power Sensor Certifications Environmental PC requirement

Model

IPS4308E (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿

Classification	Description	Date	File Size	Downloads
Installation Guide	Installation Guide IPS4304E IPS4308E	2020-06-30	3,088KB
Manual	HD Fast Dome IP Camera Series User Manual	2020-05-14	2,887KB
Catalogue	Catalogue IPS4304E IPS4308E	2017-11-02	1,252KB
A&E	A&E IPS4304E IPS4308E	2014-10-22	242KB
Image	High-Resolution Image		6,257KB
