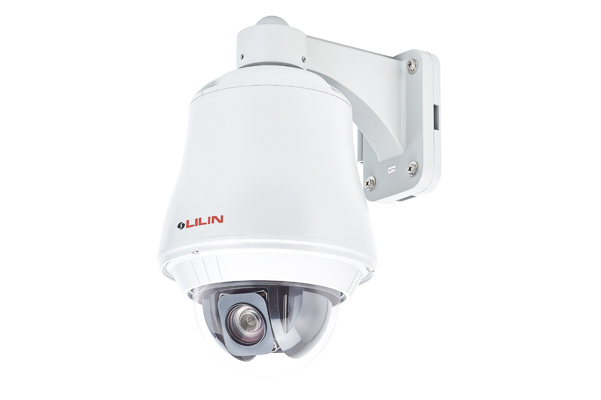

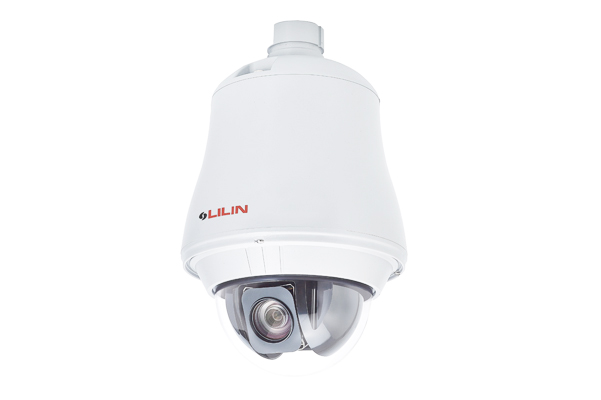

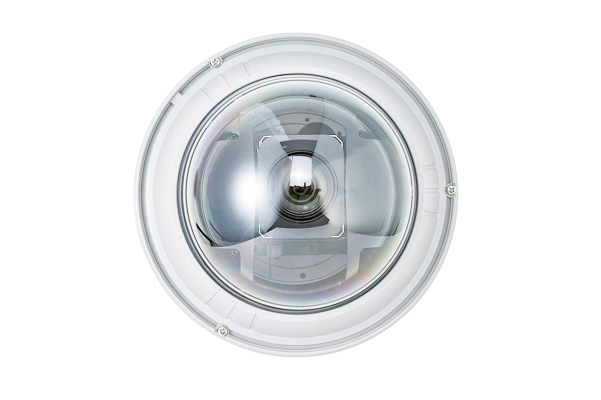

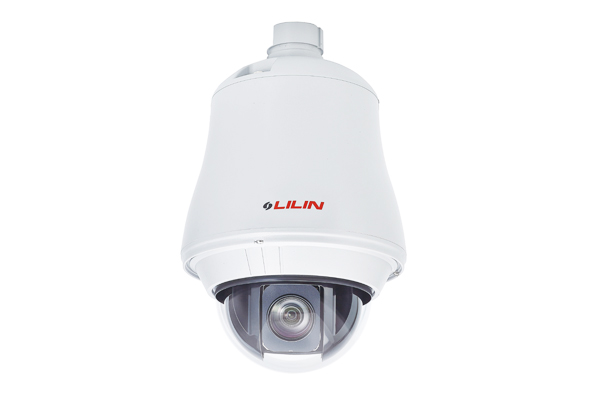

20X Day & Night 2MP Outdoor Vandal PTZ Camera

Model：IPS4204E (Discontinued) / IPS4208E (Discontinued)

Features Description Specifications Downloads Accessories

Outdoor Vandal PTZ camera
20X optical zoom
IP66 rain and dust resistant
IR cut filter for day/night operations
1080p HD resolution
Wide Dynamic Range
IK10 impact resistant

The IPS4204E / IPS4208E is outdoor fitted Day & Night 1080P HD WDR PTZ Dome IP Camera that in compliance with LILIN’s already established HD PTZ series of cameras. The camera can be powered through High Power over Ethernet, which complies with the PoE standard IEEE 802.3at. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide dynamic Range (WDR) feature, the IPS4204E / IPS4208E captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with Digital noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets

IPS4204E (Discontinued) IPS4208E (Discontinued)

Video performance Power Sensor Certifications Environmental PC requirement

Model

IPS4204E (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

Video performance Power Sensor Certifications Environmental PC requirement

Model

IPS4208E (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿

Classification	Description	Date	File Size	Downloads
Installation Guide	Installation Guide IPS4204E IPS4208E	2020-06-30	3,088KB
Software	IPScan Version 2.0.0.192	2019-07-30	6,518KB
Catalogue	Catalogue IPS4204E IPS4208E	2017-11-02	1,278KB
Manual	1080P HD IP PTZ Camera Instruction Manual	2014-10-03	3,894KB
Image	High-Resolution Image		6,257KB
