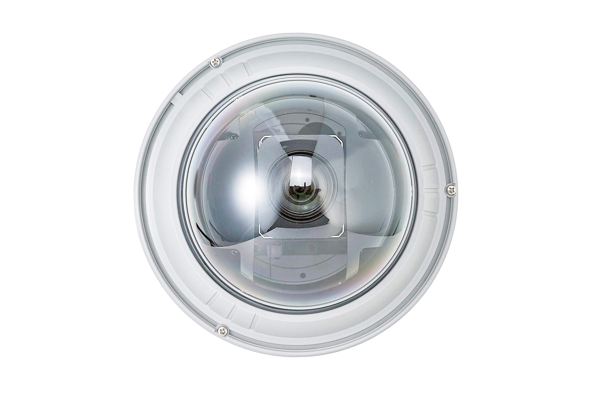

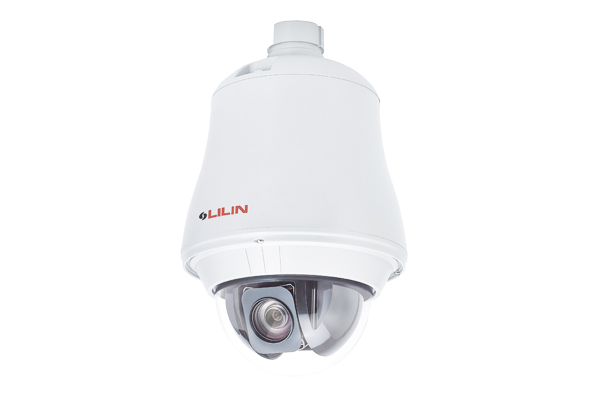

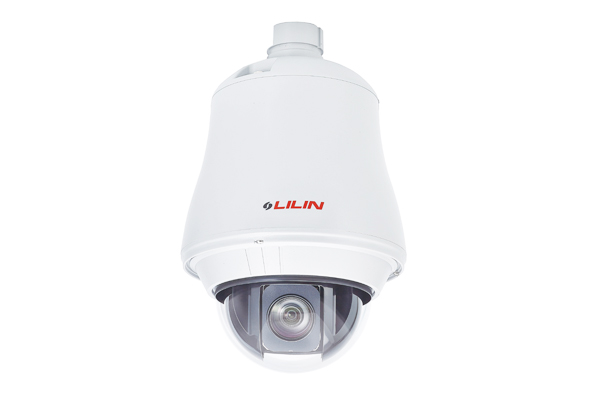

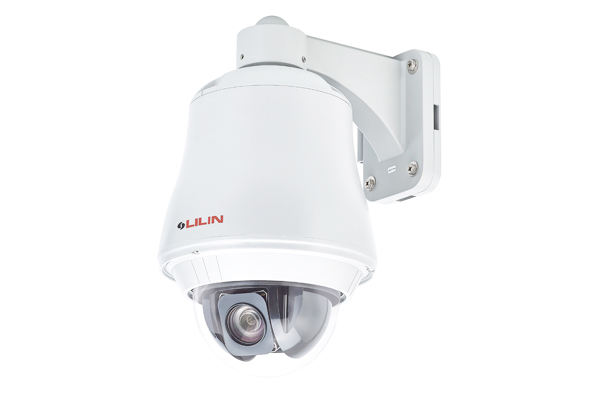

18X Day & Night 1080P HD WDR Speed Dome IP Camera (Outdoor)
Model:IPS4184E / IPS4188E
- 18X Optical Zoom Lens(4.7 − 84.6mm)
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- Wide Dynamic Range
- Digital Noise Reduction
- 2-way audio supported
- Sense Up function
- ONVIF supported
- Weatherproof IP 66
The IPS4184E / IPS4188E is outdoor fitted Day & Night 1080P HD WDR Speed Dome IP Camera that in compliance with LILIN’s already established HD PTZ series of cameras. The camera can be powered through High Power over Ethernet, which complies with the PoE standard IEEE 802.3at. The high-speed domes are capable of streaming HD video at up to 30 FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IPS4184E / IPS4188E captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with digital noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 18x optical zoom capacity give the IPS4184E / IPS4188E an impressive range.
With a focal length of 4.7-84.6mm and a compact design, the IPS4184E / IPS4188E is ideal for numerous applications. Further features include privacy zones, comprehensive scheduling, 2-way audio, weighted mode, alarm activation by motion detection.
Model
IPS4184E
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Model
IPS4188E
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Catalogue | Catalogue-IPS4184E IPS4188E | 2017-04-10 | 1,331KB | |
Installation Guide | IPS4184E, IPS4188E, IPS4204E, IPS4208E, IPS4304EA, IPS4308EA, IPS6224E and IPS6228E Installation Guide | 2014-11-13 | 4,262KB | |
Manual | 1080P HD IP PTZ Camera Instruction Manual | 2014-10-03 | 3,894KB | |
Image | High-Resolution Image | 6,257KB |
-
