18X Day & Night 1080P HD WDR Speed Dome IP Camera (Outdoor)

Model:IPS4184E (Discontinued) / IPS4188E (Discontinued)

  • 18X Optical Zoom Lens(4.7 − 84.6mm)
  • True H.264 AVC/MPEG-4 part 10 real-time video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • Wide Dynamic Range
  • Digital Noise Reduction
  • 2-way audio supported
  • Sense Up function
  • ONVIF supported
  • Weatherproof IP 66

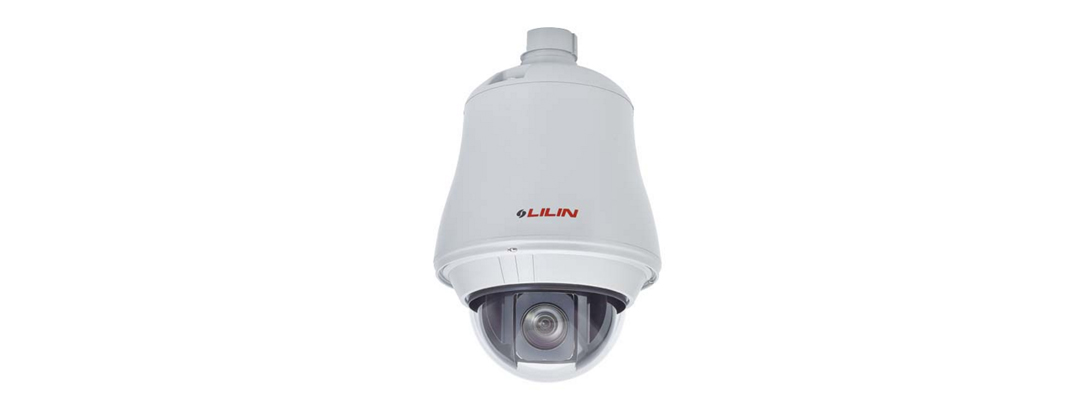

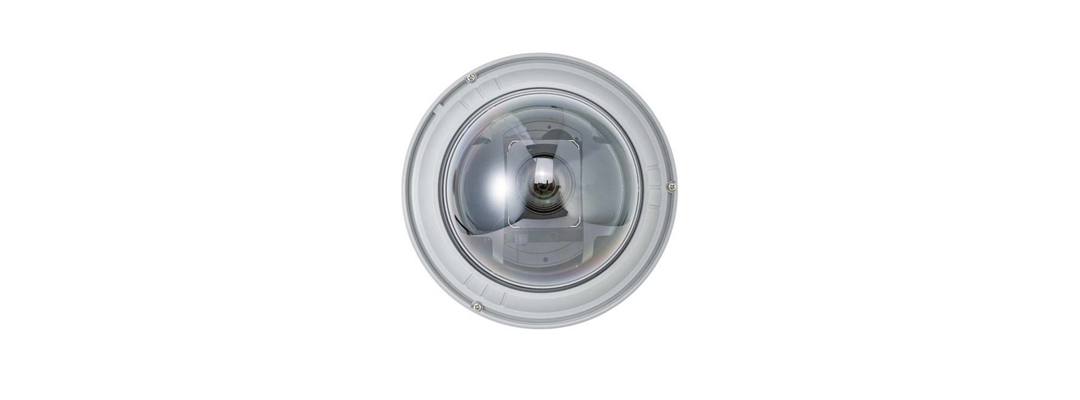

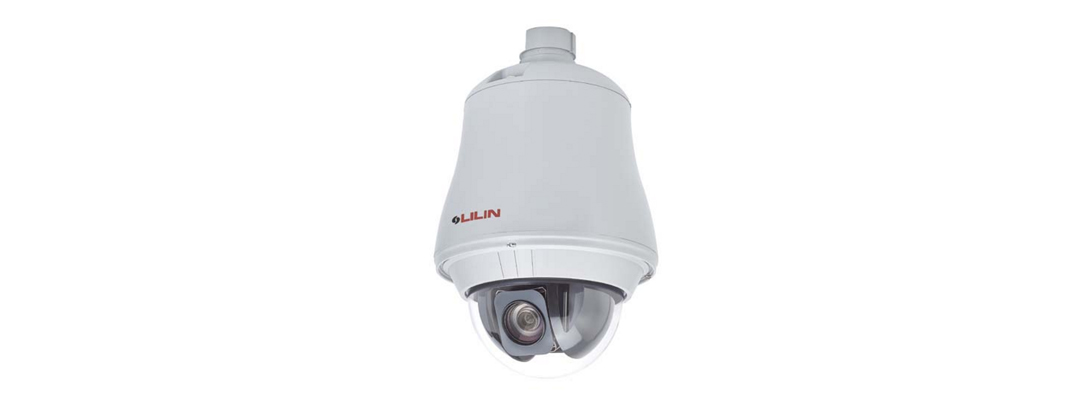

The IPS4184S/IPS4188S is 1080P HD PTZ Dome IP camera. The high-speed dome is capable of streaming HD video at up to 30FPS. Featuring LILIN’s Wide Dynamic Range (WDR) feature, the IPS4184S/IPS4188S captures highlights and shadows simultaneously, eliminating pixilation and smear. Combine this with 3D noise reduction technology and adaptive tone reproduction and the contrast of images in bright or dark areas is dramatically improved. Capable of making 360° continuous rotations, users can accurately position the camera to identify specific targets. The 18x optical zoom gives the IPS4184S/IPS4188S an impressive range. With a focal length of 4.7〜84.6mm, an IP66 weatherproof rating and a compact design, the IPS4184S/IPS4188S is ideal for numerous applications.

Further features include privacy zones, comprehensive scheduling, 2-way audio, weighted mode, digital PTZ, alarm activation by motion, audio detection, and 6 digital inputs. Connecting the cameras to your IP system is simple. Pair them with our NVR Touch series, and the installation wizard, WS Discovery, will locate all IP cameras on the network and generate a snapshot image of each channel. This will help with identification and greatly speed up camera setup.

Model

IPS4184E (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

Model

IPS4188E (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Catalogue Catalogue-IPS4184E IPS4188E 2017-04-10 1,331KB
Installation Guide IPS4184E, IPS4188E, IPS4204E, IPS4208E, IPS4304EA, IPS4308EA, IPS6224E and IPS6228E Installation Guide 2014-11-13 4,262KB
Manual 1080P HD IP PTZ Camera Instruction Manual 2014-10-03 3,894KB
