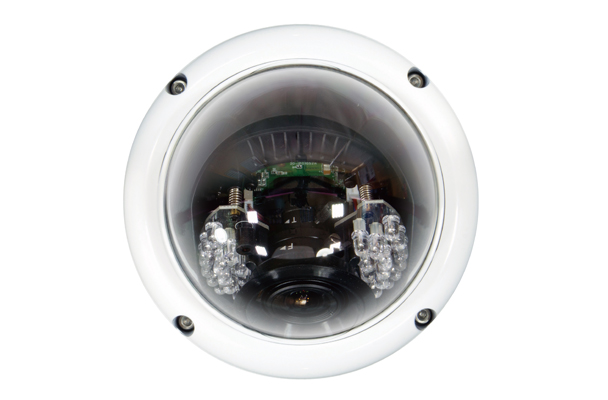

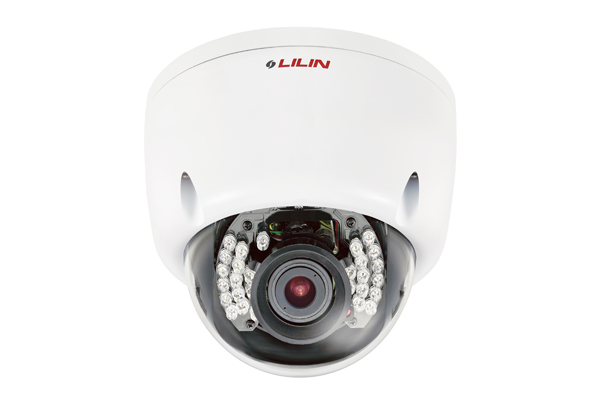

1080P Day & Night Vari-Focal IR Vandal Resistant IP Dome Camera
Model:IPR6122ESX3.6
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Face / Tampering / Audio / Motion detection alarm function
- Impact Resistant Polycarbonate Dome Cover
- High efficiency IR LED, radiant distance up to 25m
- Day & Night (IR cut removable)
- 2-way audio supported
- Digital I/O : 1 in, 1 out
- ONVIF supported
- Support Sense Up + and Quadruple Streaming technologies
As with all Pro series cameras, IK10 vandal resistant rating Day & night 2MP HD vandal resistant dome IR IP camera IPR6122X incorporates Sense Up+, a unique technology that successfully delivers stunning video in low-light conditions. Featuring high-efficiency IR-LEDs provide 25 meters of light. Utilizing intelligent image signal processing, AGC control, and 3D noise reduction, this model successfully delivers the ultimate low-light image without motion blur. The IPR6122ESX3.6 is capable of producing four independent video streams, different streams can be set for different applications, depending on the individual user requirements.
The IP67-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Further features include Region of Interest (ROI), 2-way audio, digital PTZ (pan-tilt-zoom), PoE (Power over Ethernet) and alarm activation by motion, tamper, face and audio detection.
Model
IPR6122ESX3.6
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Classification | Description | Date | File Size | Downloads |
Manual | Pro, L and Covert Series User Manual | 2020-05-05 | 3,327KB | |
Catalogue | Catalogue IPR6122X | 2018-03-13 | 1,796KB | |
Firmware | Firmware 1.4.66 , IPD2122, IPD2220, IPD2322, IPD6122, IPD6220, IPG1022,IPR2122,IP2322,IPR2522,IPR320,IPR424/8, IPR6122, IPR722, IPR7424/8, IPR7722, IPR7922 | 2016-03-07 | 20,325KB | |
A&E | A&E IPD6132X | 2015-09-18 | 170KB | |
Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
Installation Guide | Installation Guide IPR6132ESX / IPD6132ESX / IPR6122ESX / IPD6122ESX / LR6122EX / LD6122EX / ZR6122EX / ZD6122EX | 2014-07-29 | 2,202KB | |
