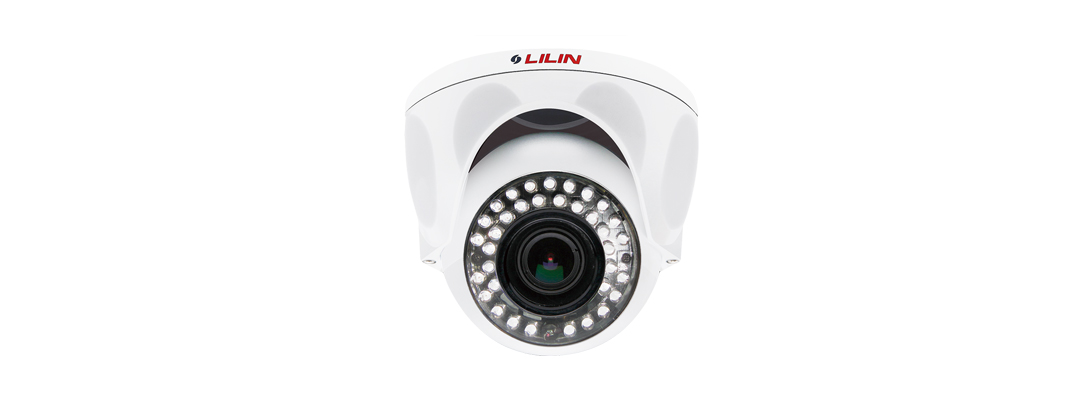

Day & Night 1080P HD Vandal Resistant Dome IR IP Camera

Model:IPR320ESX3.6 (Discontinued)

  • Full HD 2 megapixel CMOS image sensor
  • True H.264 AVC/MPEG-4 part 10 real-time video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital PTZ supported
  • Face / Tampering / Motion detection alarm function
  • High efficiency IR LED, radiant distance up to 25m
  • Innovatory external adjustment with waterproof for zoom and focus of Vari-Focal lens
  • Day & Night (IR cut removable)
  • ONVIF supported
  • Support Sense Up + and Quadruple Streaming technologies

Discontinued date

  • 2019.01.31

Alternative models

  • MR8322 / MR6422X

As with all Pro series cameras, the Day & Night 1080P HD VR Dome IR IP Camera IPR320X incorporates Sense Up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D noise reduction, this model successfully delivers the ultimate low-light image without motion blur. The IPR320X is capable of producing four independent video streams, different streams can be set for different applications, depending on the individual user requirements.

The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Further features include Region of Interest (ROI), digital PTZ (pan-tilt-zoom), PoE (Power over Ethernet) and alarm activation by motion, tamper, face detection.

Model

IPR320ESX3.6 (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Manual M, ZMR, Pro, L and Covert Series IP Camera User Manual 2019-04-16 3,000KB
Catalogue Catalogue IPR320X 2018-04-26 2,212KB
Manual LILIN IP Camera Start Guide 2015-05-18 1,503KB
A&E A&E IPR320X 2014-07-18 62KB
Image High-Resolution Image 2,177KB
