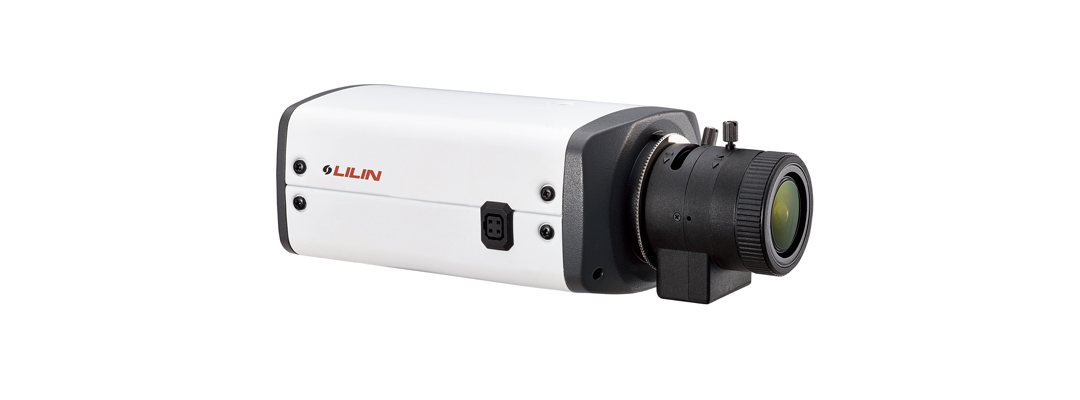

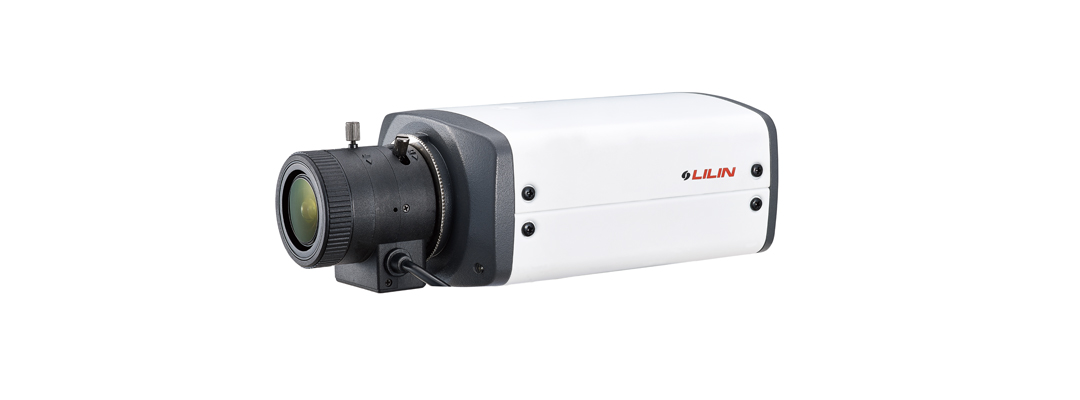

5MP Day & Night IP Box Camera

Model:IPG1052ES

  • Full HD 5.0 megapixel CMOS image sensor
  • True H.264 AVC/MPEG-4 part 10 real-time video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital PTZ supported
  • Face / Tampering / Audio / Motion detection alarm function
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF supported
  • RS-485 supported

As with all Pro series cameras, the IPG1052 incorporates Sense Up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D noise reduction, this model successfully delivers the ultimate low-light image without motion blur. Measuring less than 125mm in length, this latest addition to the range provides an internal solution suited to multiple applications.

The IPG1052ES is capable of producing four independent video streams at a recording rate of up to 12FPS, meaning different streams can be set for different applications, depending on the individual user requirements. Further features include Region of Interest (ROI), 2-way audio, digital PTZ (pan-tilt-zoom), PoE (Power over Ethernet) and alarm activation by motion, tamper, face and audio detection.

Model

IPG1052ES

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Manual Pro, L and Covert Series User Manual 2020-05-05 3,327KB
Catalogue Catalogue IPG1052 2017-10-30 832KB
Installation Guide Installation Guide LB1022, IPG1022, IPG1032, IPG1052 and MG1022 2017-09-06 1,166KB
A&E A&E IPG1052 2015-09-18 175KB
Manual LILIN IP Camera Start Guide 2015-05-18 1,503KB
Image High-Resolution Image 255KB
