Products

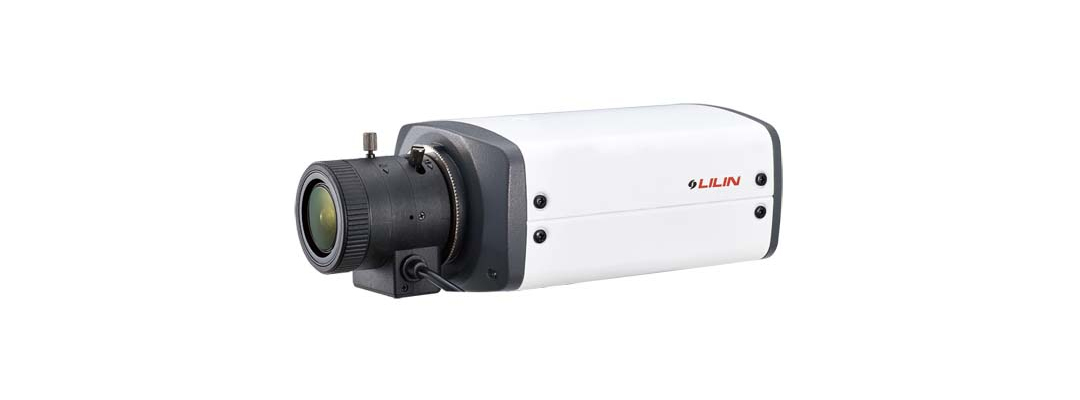

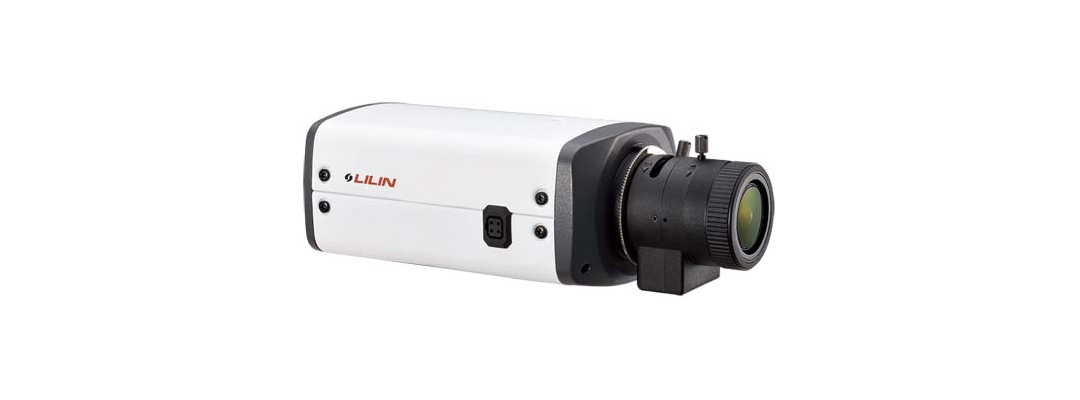

Day & Night 3MP HD IP Camera

Model:IPG1032ESX3 (Discontinued)

  • Full HD 3.27 megapixel CMOS image sensor
  • True H.264 AVC/MPEG-4 part 10 real-time video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • Digital PTZ supported
  • Face / Tampering / Audio / Motion detection alarm function
  • Day & Night (IR cut removable)
  • 2-way audio supported
  • Digital I/O : 1 in, 1 out
  • ONVIF supported
  • Support Sense Up + and Quadruple Streaming technologies

Discontinued date

  • 2018.10.13

Alternative models

  • ZMR8142X-P / ZMR8442X / ZMR7742X / ZMR7442X-P

LILIN's award-winning IPG1032X 3MP HD IP Camera is capable of streaming video at up to 15 FPS (frames per second) design suited to almost any application. As with all Pro series cameras, the IPG1032X incorporates Sense Up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D noise reduction, this model successfully delivers the ultimate low-light image without motion blur. Measuring less than 125mm in length, this latest addition to the range provides an internal solution suited to multiple applications.

The IPG1032X is capable of producing four independent video streams at a recording rate of up to 15FPS, meaning different streams can be set for different applications, depending on the individual user requirements. Further features include Region of Interest (ROI), e-Tour, 2-way audio, weighted mode, digital PTZ (pan-tilt-zoom), PoE (Power over Ethernet) and alarm activation by motion, tamper, face and audio.

Model

IPG1032ESX3 (Discontinued)

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Software IPScan Version 2.0.0.192 2019-07-30 6,518KB
Catalogue Catalogue IPG1032X 2017-10-30 943KB
Installation Guide Installation Guide LB1022, IPG1022, IPG1032, IPG1052 and MG1022 2017-09-06 1,166KB
A&E A&E IPG1032X 2015-09-18 167KB
Manual LILIN IP Camera Start Guide 2015-05-18 1,503KB
Firmware Pro Series 3MP Firmware 1.1.18 , IPD6132 ,IPG1032 , IPR2132 2014-02-20 20,813KB
Image High-Resolution Image 255KB
