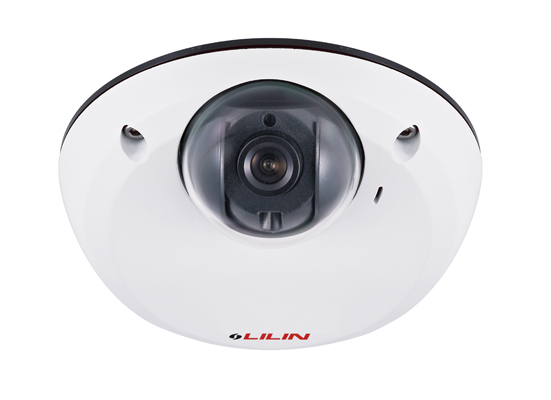

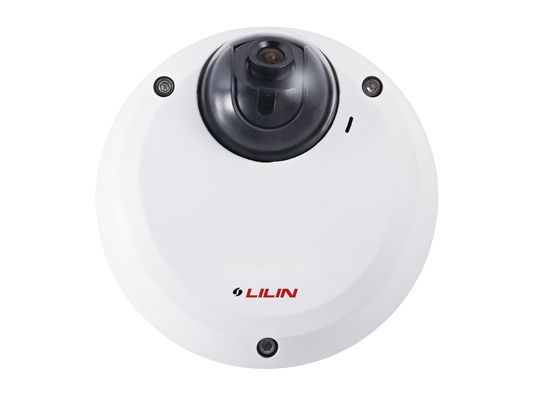

1080P HD Dome IP Camera
Model：IPD2220ES2 (Discontinued) / IPD2220ES4.3 (Discontinued)
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Face / Tampering / Motion detection alarm function
- ONVIF supported
- Support ""Sense UP+"" technology
- Support ""Quadruple Streaming"" technology
Discontinued date
- 2018.10.13
Alternative models
- MD2222 / MD2222E2
As with all Pro series cameras, 1080P HD Dome IP Camera IPD2220 incorporates Sense Up+, a unique technology that successfully delivers stunning video in low-light conditions. Utilizing intelligent image signal processing, AGC control, and 3D noise reduction, this model successfully delivers the ultimate low-light image without motion blur. The IPD2220 is capable of producing four independent video streams, different streams can be set for different applications, depending on the individual user requirements.
Further features include Region of Interest (ROI), 1-way audio, digital PTZ (pan-tilt-zoom), PoE (Power over Ethernet) and alarm activation by motion, tamper, face and audio detection.
Model
IPD2220ES2 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Model
IPD2220ES4.3 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | M, ZMR, Pro, L and Covert Series IP Camera User Manual | 2019-04-16 | 3,000KB | |
| Catalogue | Catalogue- IPD2220 | 2017-11-01 | 806KB | |
| Installation Guide | IPD2220ES, LD2222E, SD2222E, IPD6220ES, IPD6222ES, MD2222 and MD2242 Installation Guide | 2016-03-08 | 1,186KB | |
| Firmware | Firmware 1.4.66 , IPD2122, IPD2220, IPD2322, IPD6122, IPD6220, IPG1022,IPR2122,IP2322,IPR2522,IPR320,IPR424/8, IPR6122, IPR722, IPR7424/8, IPR7722, IPR7922 | 2016-03-07 | 20,325KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
| A&E | A&E IPD2220 | 2014-07-18 | 153KB | |
| Image | High-Resolution Image | 4,113KB |
-
