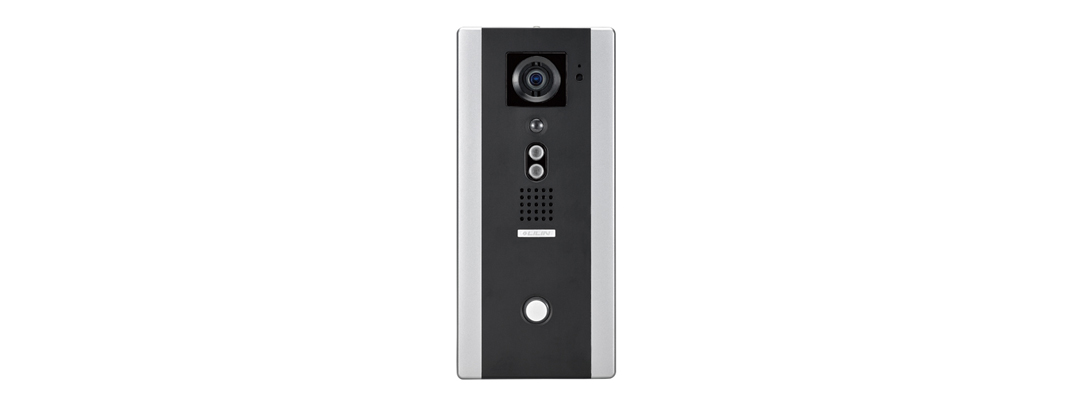

1080P Full HD Door Station
Model：IPC0522E2 / IPC0522E6
- Full HD 2 megapixel CMOS image sensor
- 2D WDR function
- Digital PTZ supported
- Motion / Tamper / Alarm detection
- High efficiency IR LED & White LED, IR LED radiant distance up to 10m
- Day & Night (IR cut removable)
- Built-in highly sensitive microphone
- 2-way audio supported
- Digital I/O : 2 in, 1 out
- ONVIF Profile S supported
- SIP support
- Audio and video intercom
- RS-485 supported
- IP66 rain and dust resistan
One-button door station with high quality camera
Allows direct communication between you and your visitorLILIN IPC0522 video call door station comes with an excellent intercom feature which provides echo free 2-way speech with visitors at the entrance. The unit supports SIP for easy integration with various IP phone systems and the use of PoE allows for installation with one single network cable. Combined with an integrated high definition camera with WDR and excellent Sense Up+ low-light performance, the unit offers day and night identification of persons at the door. Everything from single- family apartment unit to multi-family houses can be equipped with the LILIN IPC0522 video calldoor station. It is effectively control entry to your premises.
Model
IPC0522E2
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
Model
IPC0522E6
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue IPC0522E2 | 2020-12-24 | 2,142KB | |
| Catalogue | Catalogue IPC0522E6 | 2020-12-24 | 2,387KB | |
| Installation Guide | Installation Guide IPC0522E2 | 2020-10-14 | 1,839KB | |
| Installation Guide | Installation Guide IPC0522E6 | 2020-10-14 | 1,839KB | |
| Firmware | Firmware version : 3.2.92.9073 | 2020-07-02 | 57,141KB | |
| Manual | DoorStation User Manual IPC0522 | 2017-01-12 | 3,830KB |
