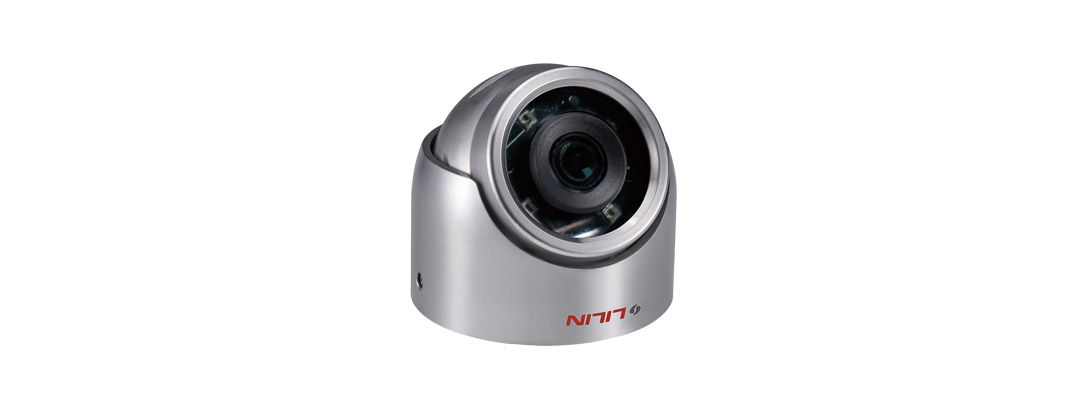

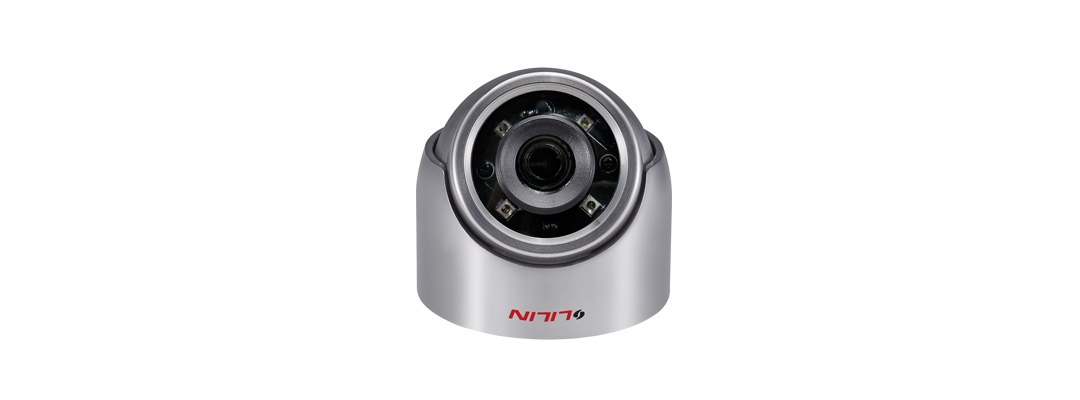

Stainless IR IP Dome Camera
Model：IPC0422E4
- Full HD 2 megapixel CMOS image sensor
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- H.264 and Motion JPEG multi-profile video streaming
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Tampering / Audio / Motion detection alarm function
- Stainless dome camera module
- High efficiency IR LED, radiant distance up to 16m
- Day & Night (IR cut removable)
- 2-way audio supported
- SD card supported
- Digital I/O : 2 in, 1 out
- ONVIF Profile S supported

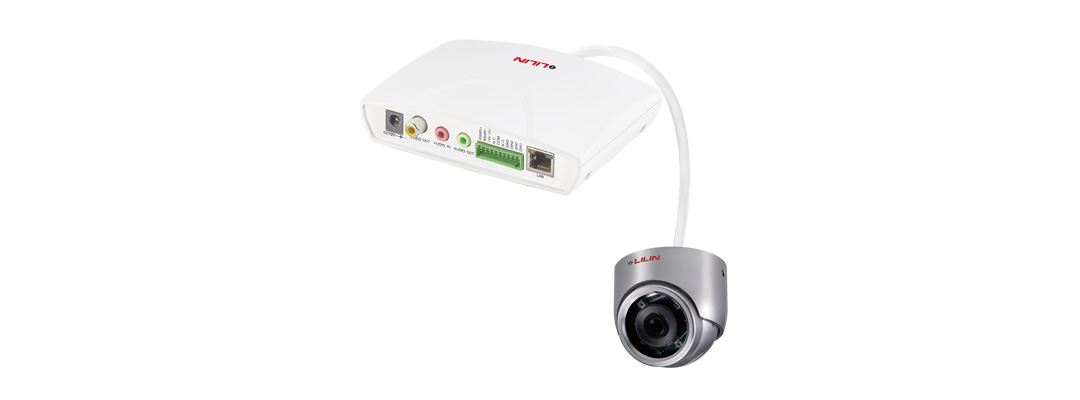

Marine day/night dome IP camera ideal mounting on everything from boats to vehicles. The camera comprises SUS316 stainless steel camera housing designed to protect corrosive and industrial environments. Covert series marine IP camera IPC0422E4 provides HD live and recorded video. LILIN covert IP camera comprises a main unit and a separate camera unit which allows them to be mounted apart. The main unit and the camera unit are connected together by 6-meter long cable in providing definite flexibility to place the camera unit in one place and the main unit else where.
Model
IPC0422E4
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | Pro, L and Covert Series User Manual | 2020-05-05 | 3,327KB | |
| Catalogue | Catalogue IPC0422 | 2017-10-23 | 1,343KB | |
| A&E | A&E IPC0422 | 2016-12-16 | 171KB | |
| Installation Guide | Installation Guide IPC0122P / IPC0122WP / IPC0422E | 2016-06-27 | 2,859KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB |
