1080P HD Covert WiFi IP Camera
Model：IPC0122WP3
- Full HD 2 megapixel CMOS image sensor
- WiFi supported (IEEE802.11b/g/n)
- Pinhole lens for various applications
- Discreet design
- 3D noise reduction (MCTF)
- 2D WDR function
- Digital PTZ supported
- Tampering / Audio / Motion detection alarm function
- 2-way audio supported
- SD card supported
- Digital I/O : 2 in, 1 out
- ONVIF supported

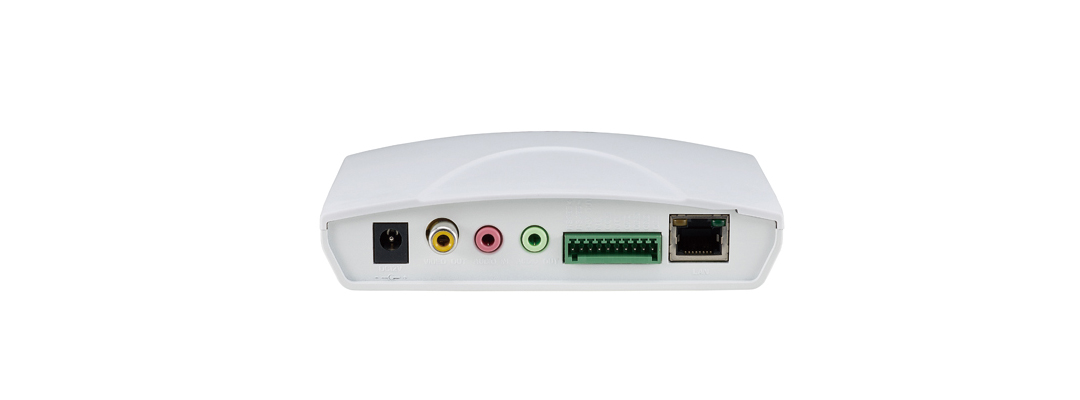

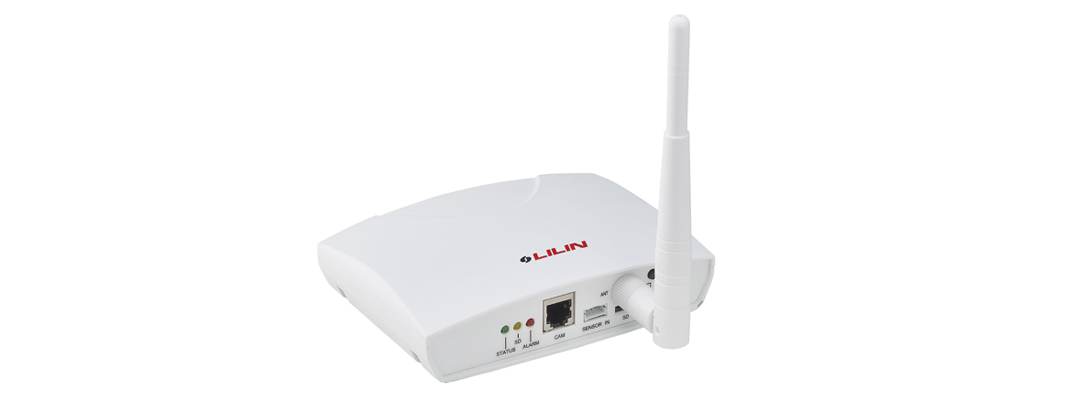

IPC0122W is covert wifi IP camera with a pinhole lens. The IPC0122 covert IP camera comprises a main unit and a separate sensor unit which allows them to be mounted up to 6 meters apart. LILIN IPC0122W covert wifi IP camera is able to send automatic alarms when the camera is tampered with – to immediately inform you with any possible security breaches or crime. The unique form factor and small sized sensor unit are able to perform embedded mounting at places where a concealed applications is required.
Model
IPC0122WP3
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Manual | Pro, L and Covert Series User Manual | 2020-05-05 | 3,327KB | |
| Catalogue | Catalogue IPC0122W | 2017-10-23 | 1,464KB | |
| Installation Guide | Installation Guide IPC0122P / IPC0122WP / IPC0422E | 2016-06-27 | 2,859KB | |
| Manual | Instruction Manual IPC0122 | 2016-05-23 | 1,324KB | |
| Manual | LILIN IP Camera Start Guide | 2015-05-18 | 1,503KB | |
| Image | Image -IPC0122 | 2,538KB |
