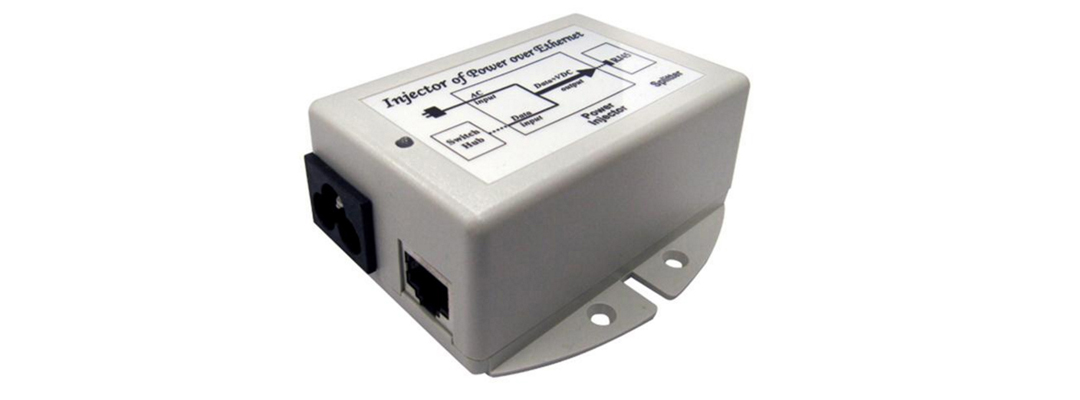

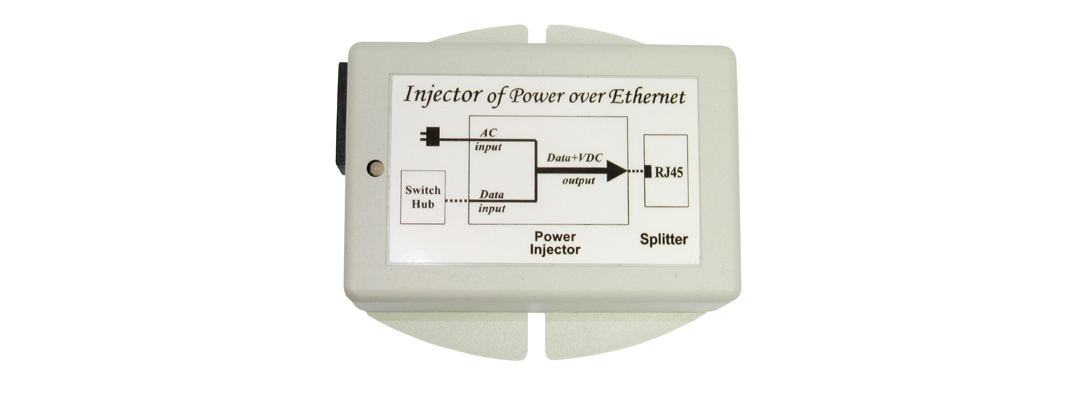

1 port General PoE Injectors
Model：IJ1748D
- Input Voltage: 100Vac ~ 240Vac
- Output Voltage: +48Vdc
- Max. Output Current: 350mA~1A
- Total Power: 16.8~24W
- Efficiency : 70% ~ 78%
- Short Circuit Protection
- Input has Fuse Protection.
The PoE Injector which delivers both of Data & Electrical Power (48Vdc-55Vdc) to the Ethernet-enable devices thru the Ethernet cable. The input power source for Injector can be 90-264Vac or 9-48Vdc.
Model
IJ1748D
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-PoE injector | 2016-12-07 | 1,662KB |
-
