• Full HD 12.0 megapixel CMOS image sensor
• True H.264 AVC High Profile video compression
• H.264 and Motion JPEG multi-profile video streaming
• 3D noise reduction
• 2D WDR function
• Support 4000x3000 resolution original image video streaming output
• Support 360-degree field of imaging and an ROI video streaming output simultaneously
• Provide 360-degree view of entire scene without any blind spot
• 360-degree entire scene from one camera and no mechanical PTZ (Pan, Tilt, Zoom) motor needed
• Up to 4 independent distortions corrected view angle can be specified (dewarping)
• Audio / Motion detection alarm function
• High efficiency IR LED, radiant distance up to 5m
• Day & Night (IR cut removable)
• 2-way audio supported
• Digital I/O: 1 in, 1 out
• ONVIF Profile S supported

Discontinued date

• 2020.05.09

Alternative models

• F2R3682IM / F2R36C2IM

Seeing everything in a scene – More efficiently than with multiple cameras

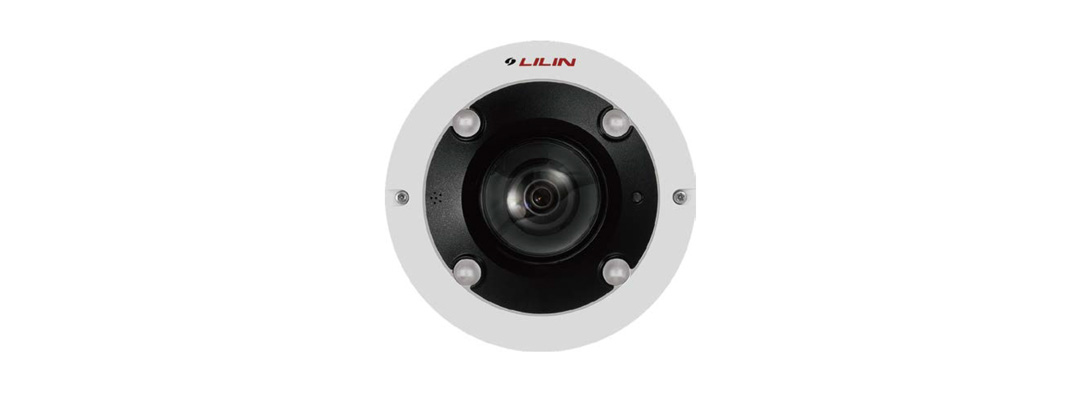

LILIN FR33C2 is a fixed dome IP security camera featuring a fisheye lens for 360° panoramic wide angle view without any blind spots. The fisheye lens with high resolution provides 360° wide view surveillance, and the panorama function with quad view enables 4 different angle images to display for recording and monitoring at the same time. This latest fisheye fixed dome network camera introduced by LILIN, featuring a detailed 12-Megapixel resolution CMOS sensor with superb image quality. With flexible design of FR33C2 allows it to be applied in various IP surveillance environments. LILIN FR33C2 delivers clear images via multi-streaming H.264 and Motion JPEG video up to 4000 x 3000 pixels, and also offers electronically pan, tilt, and zoom function that allows can give users access different video modes including: 180° panorama view or 360° source image view.
