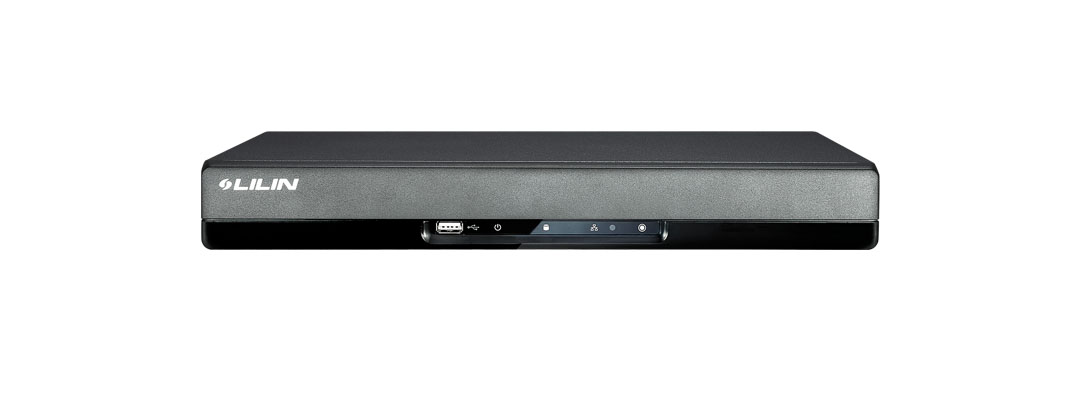

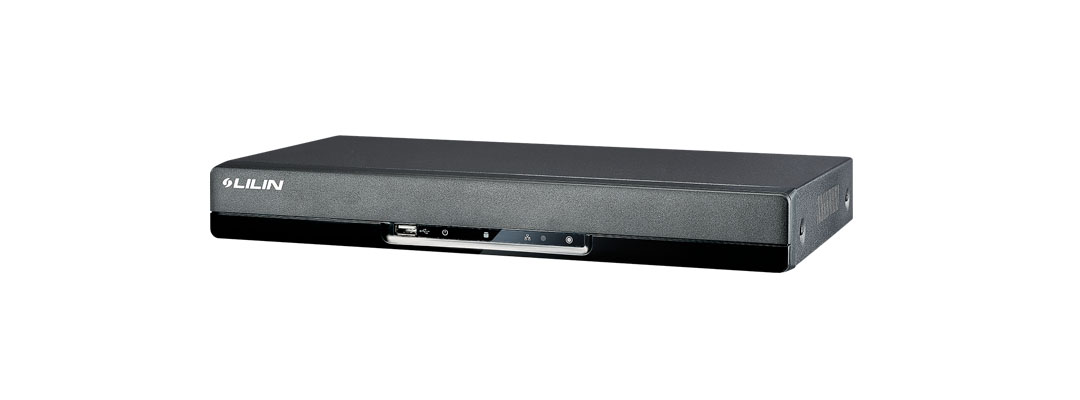

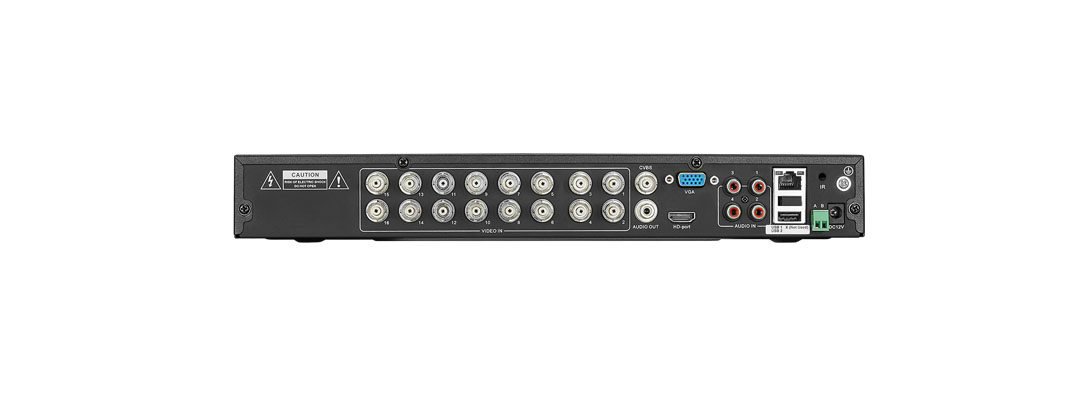

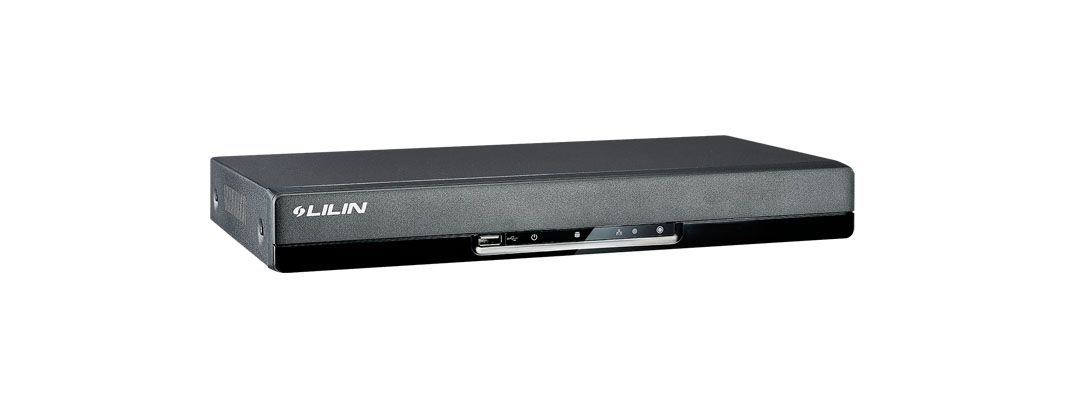

16 CH Hybrid High Definition Standalone Digital Video Recorder
Model：DHD616A
- 16 Channel Hybrid Standalone Digital Video Recorder
- 4MP H.264 LILIN IP camera supported
- UTC AHD camera supported
- Up to 8TB HDD supported
- Smart search playback with simulate high definition camera
- Mobile phone ( iOS, Android ) solutions provided
- QR Code APP scan, UID connection( Need additional option )
- Each channel 4 privacy mask area supported
Model
DHD616A
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-DHD616A | 2018-04-27 | 249KB |
