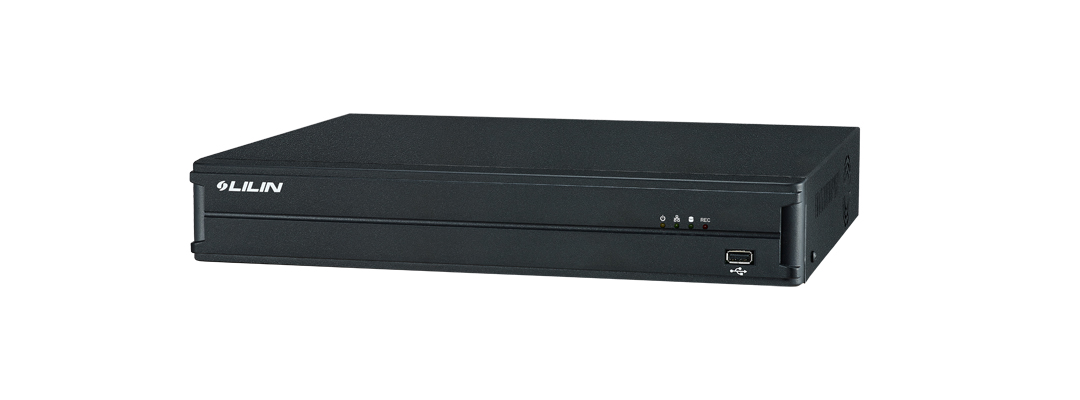

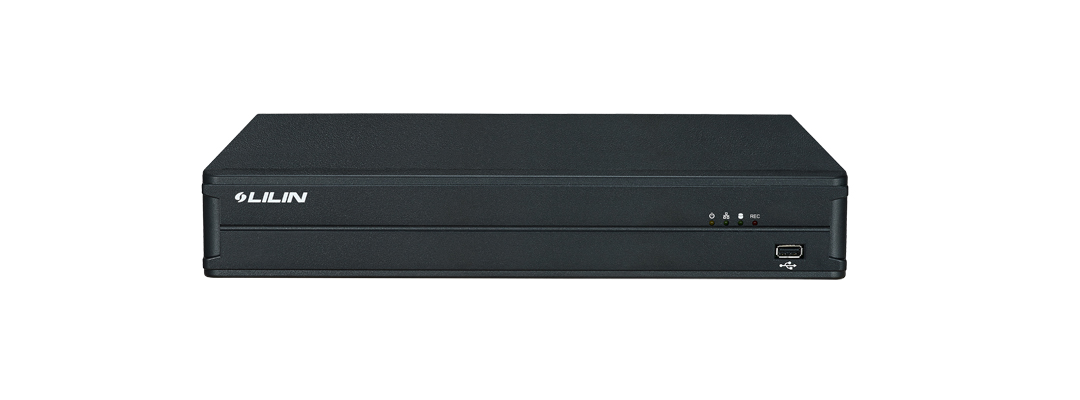

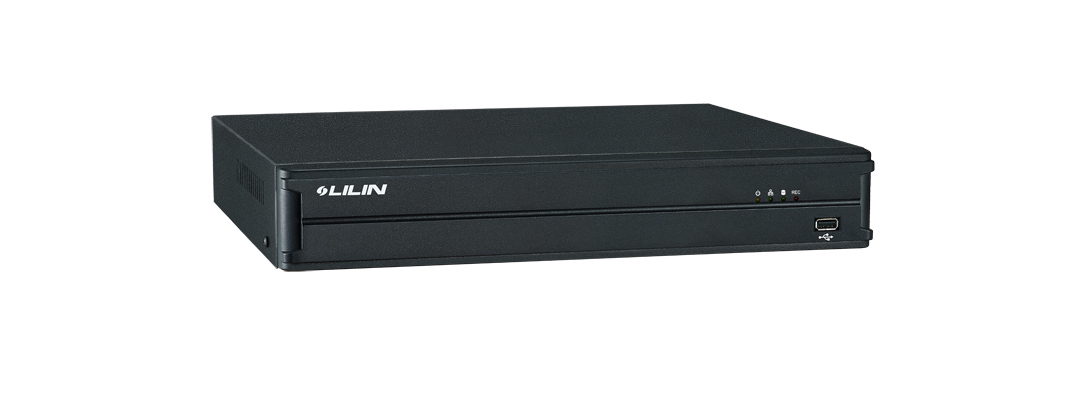

4 CH 2M 1.0 High Definition Analog Digital Video Recoder
Model：DHD204A (Discontinued)
- 4 Channel AHD High Definition Record
- Compatible to 960H analog camera
- UTC AHD camera supported
- Each channel independent record frame adjust
- Video data transmitted distance up to 200~300M, depend on coaxial cable type
- Mobile phone ( iOS, Android ) solutions provided
- QR Code APP scan, UID connection( Need additional option
- Each channel 4 privacy mask area supported
- Up to 6TB HDD supported
Discontinued date
- 2018.03.20
Alternative models
- DHD216A
Model
DHD204A (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Analogue High Definition Series | 2020-03-26 | 2,283KB | |
| Manual | DHD Series User Manual | 2017-07-12 | 12,012KB | |
| Software | CMS Software Version:1.2.21.300, For DHD series product use only. | 2017-05-10 | 26,472KB | |
| Catalogue | Catalogue- DHD204A DHD208A DHD216A | 2016-12-13 | 348KB | |
| Installation Guide | DHD Series Quick Installation Manual | 2016-11-09 | 851KB | |
| Software | NetViewer Software For DHD series product use only. | 2016-02-05 | 215KB |
-
