Device Hub

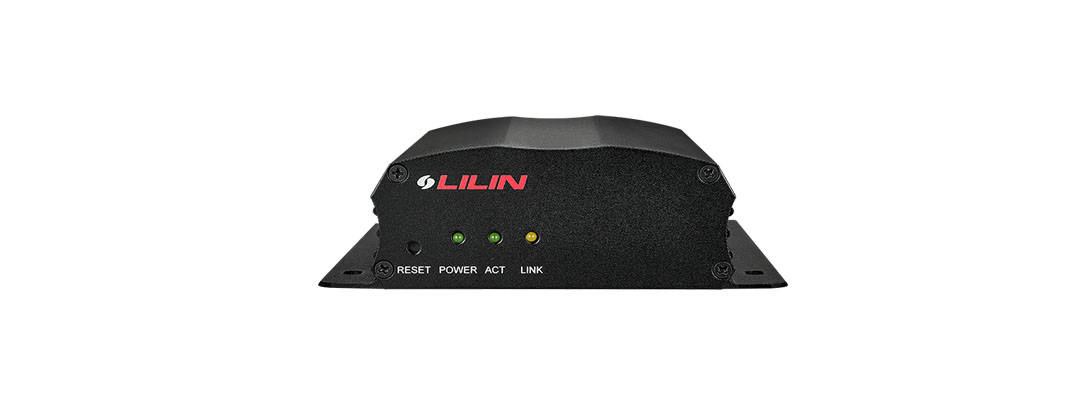

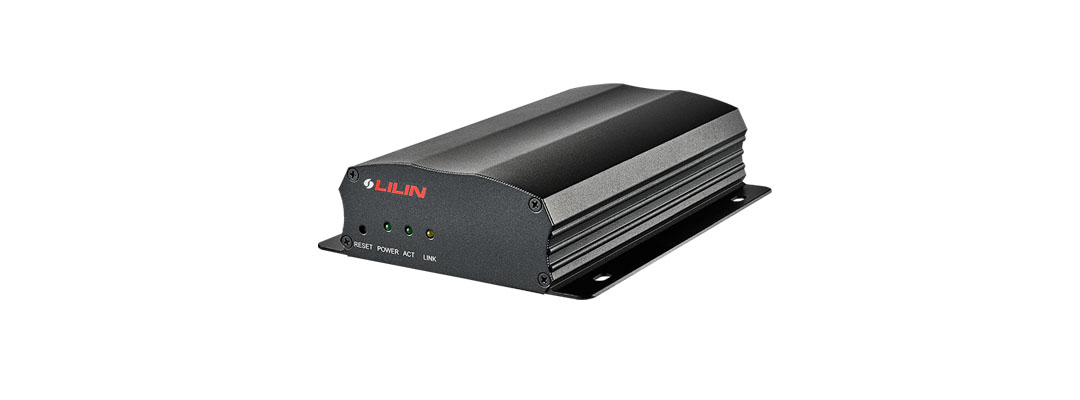

Model:DH032

  • Use your mobile phone for monitoring all device statuses for client sites
  • Remote reboot the device restoring back to work as needed
  • No more rush to a client site for maintenance
  • Plan client sites visiting for maintenance afterwards
  • Centralized client sites management with AWS redundancy
  • iOS and Android for device maintenance push notification
  • HTTPs communication and encrypted database cloud computing
  • Customize your company logo for end user Apps
  • Support dashboard for quick managing devices at client sites
  • Auto scan your network IP cameras and NVRs
  • Auto update to LILIN Device Cloud from client sites
  • Plug-n-play, no P2P, no port forwarding Forwarding
  • LILIN WebSmart PoE switch supported for power reboot

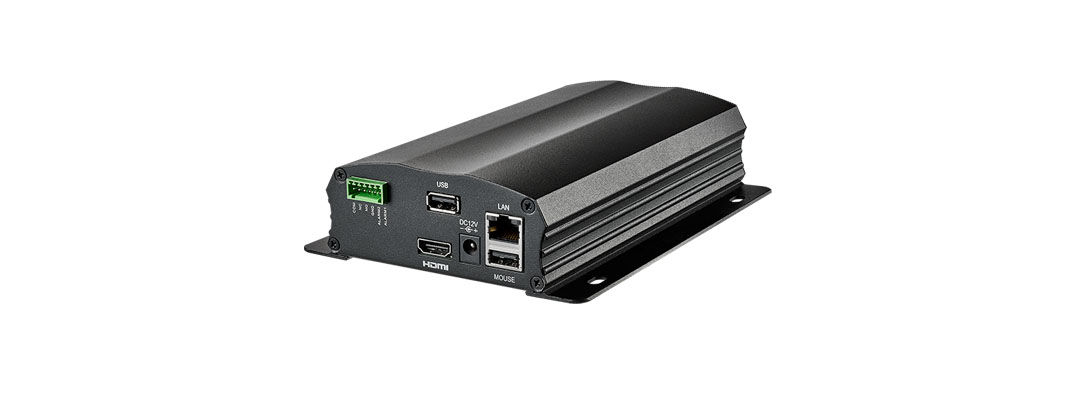

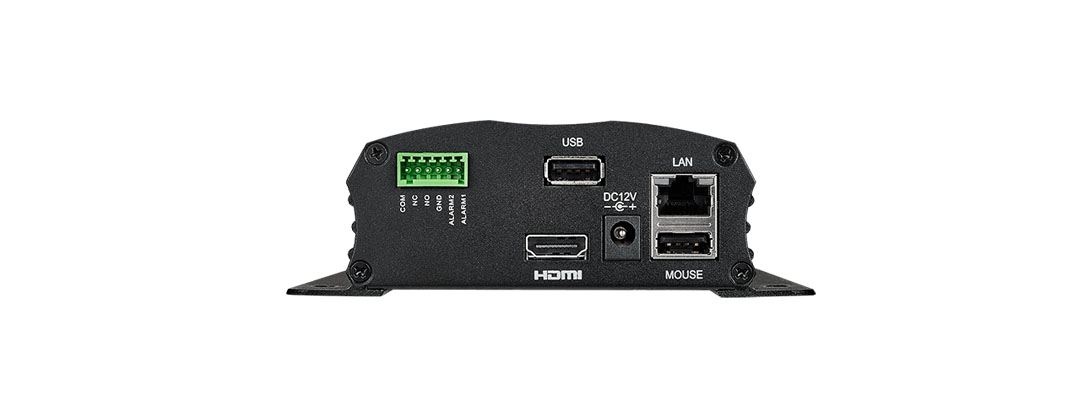

  • Support HDMI and mouse for local management

LILIN DeviceHub can manage IP cameras and NVRs via LILINHub App.  LILIN Device Cloud stores recording status, on-line status, and operational status sent by LILIN DeviceHub.  If there is an issue for an IP camera, installers are able to perform remote reboot for that IP camera via LILIN Web Smart PoE switch.  This is to make sure that devices are in operation.

Model

DH032

Video performance

Low Light Mode

0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Power

Power consumption

DC12V, 7.2W / PoE, 8W

PoE

IEEE802.3af

Power supply

DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)

Sensor

Sensor type

1/2.3-inch CMOS

Total sensor pixels

4072 (H) x 3046 (V) = 12,403,312 pixels

With Infrared

0.0 lux

2D WDR

Off / Auto / x2 / x3/ x4 (by normal mode)

Certifications

CE

Yes, EMI CLASS A

FCC

Yes, EMI CLASS A

Environmental

Operating temperature

-25℃ to 50℃ (-13℉ to 122℉)

PC requirement

CPU

Intel Core 2 Duo E6400 2.13GHz or above

RAM

2GB or above, Independent Display Card

OS

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8

︿
Classification Description Date File Size Downloads
Firmware Firmware Version : 1.0.28.3858 2020-04-15 34,140KB
Manual DH032 User Manual 2019-02-26 2,146KB
A&E DH032 A&E 2018-08-22 207KB
Catalogue Catalogue-DH032 2018-07-12 414KB
