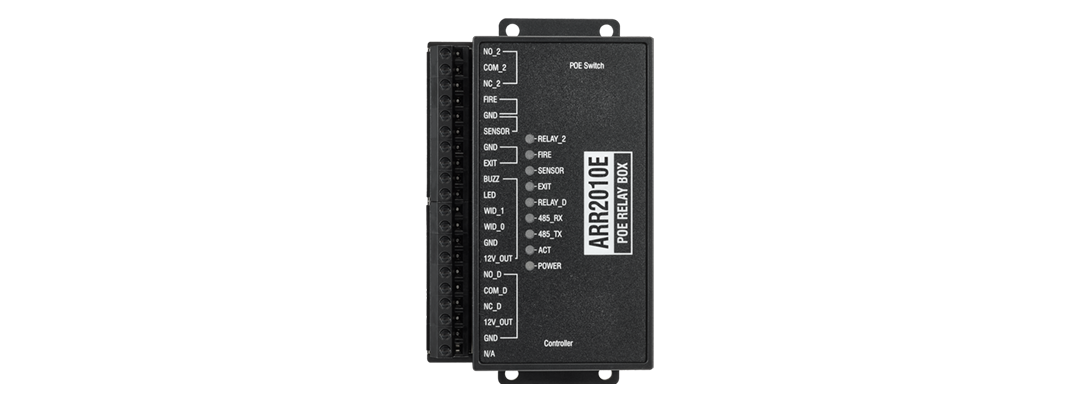

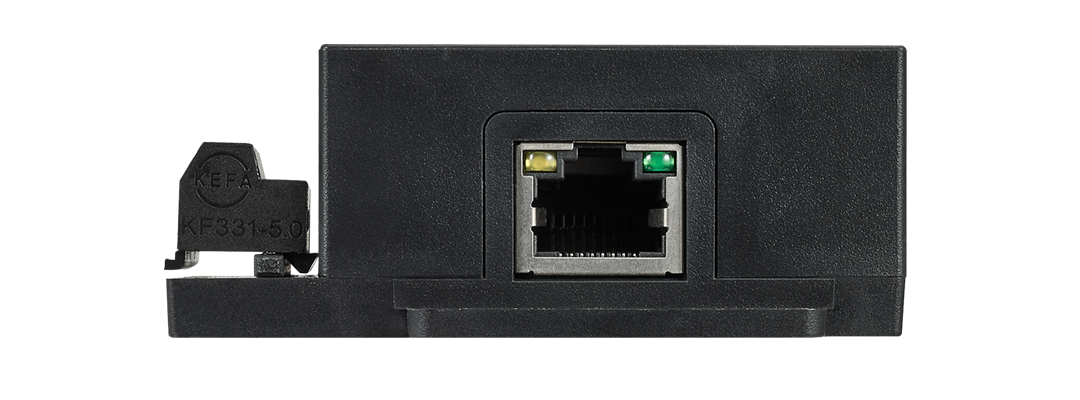

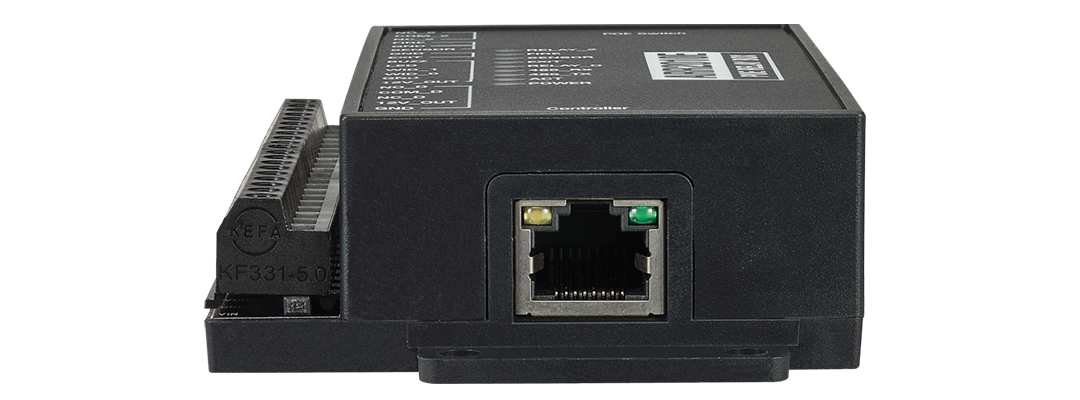

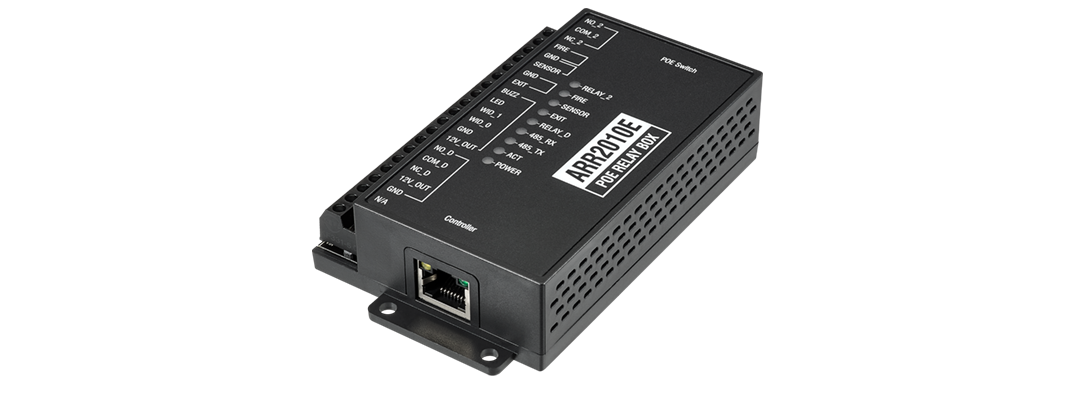

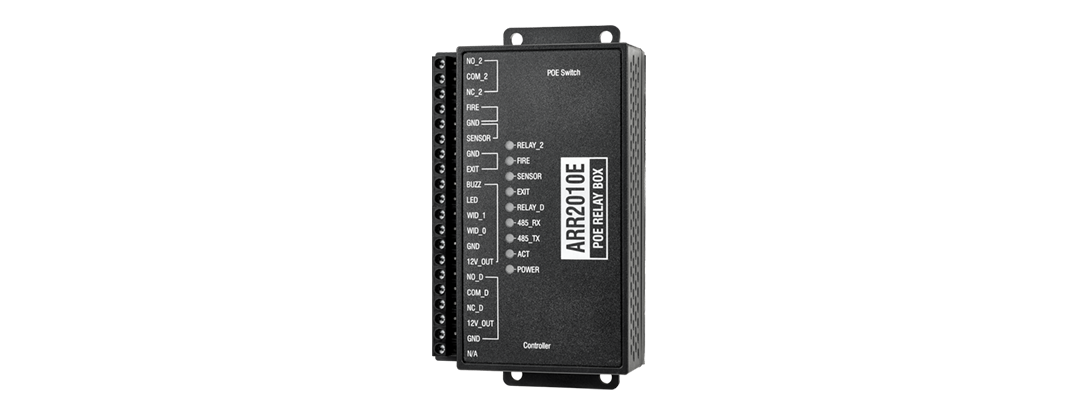

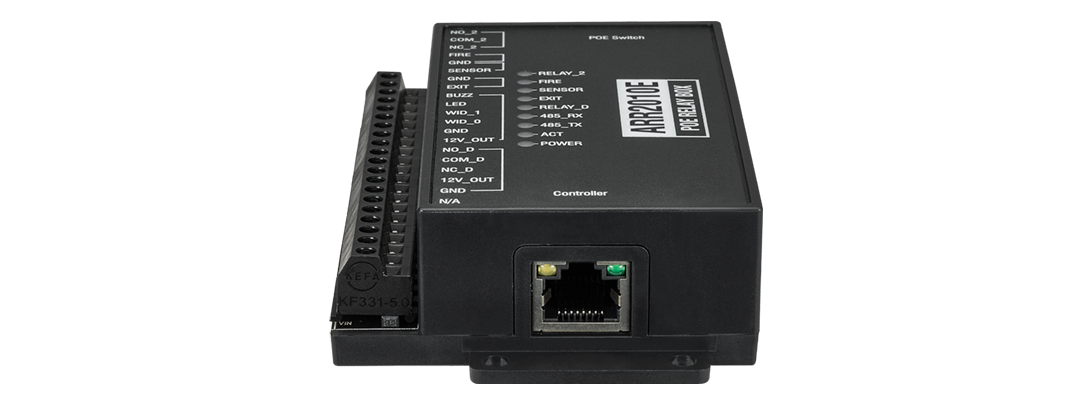

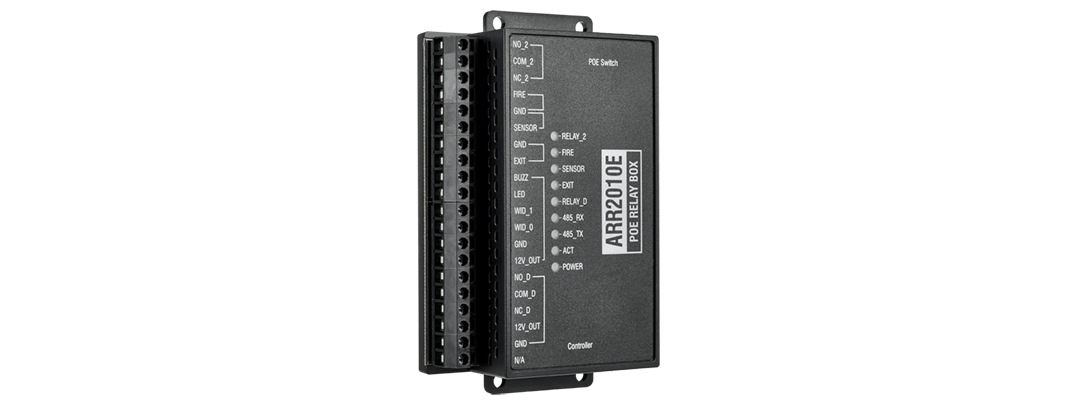

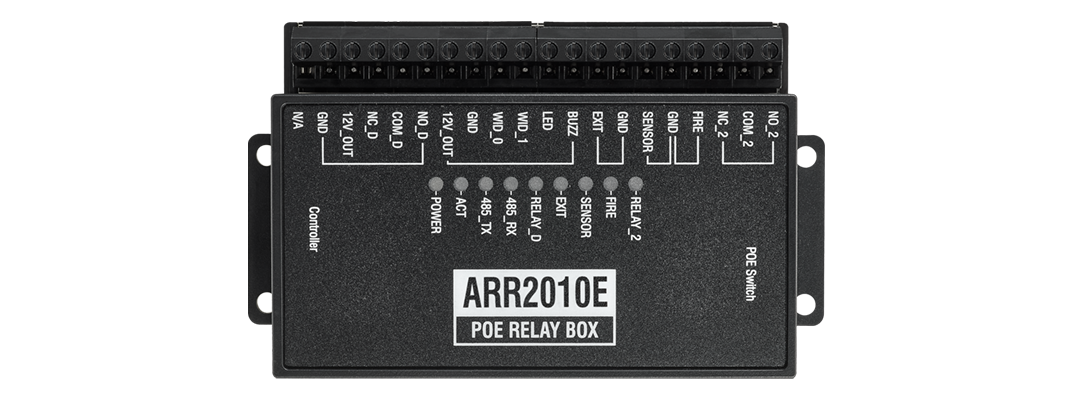

POE Relay Box
Model：ARR2010E
- Works with AR2015E.
- Built-in 1 wiegand interface、3 inputs(Exit Button／Door Sensor／Fire Alarm) and 2 relay outputs(Door Lock / Alarm) to replace the similar functions of AR2015E in order to prevent the wires can be easily damaged by intruder.
- Built-in H/W watchdog to keep controller to be available.
- Supports PoE power supply, and offers the power to AS2015.
- DC12V output.
Model
ARR2010E
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Brochure | Access Control System Brochure | 2019-03-22 | 3,533KB | |
| Catalogue | Catalogue ARR2010E | 2019-01-16 | 852KB | |
| Manual | POE Relay Box Installation Guide, For Model : ARR2010E | 2019-01-16 | 319KB |
