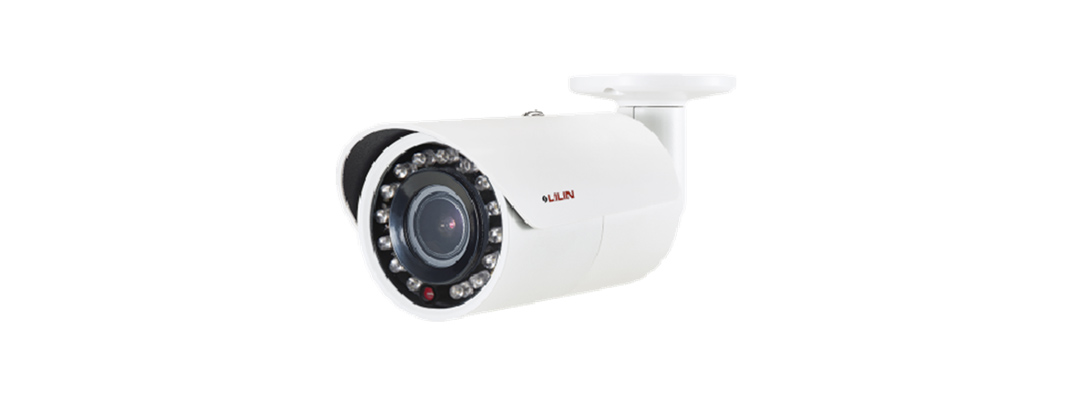

D/N 1080P AHD PoC IR Bullet Camera
Model：AHDC842AX4.2
- Video Output: AHD 1080P / AHD 720P / CVBS
- Support PoC (Power over Coax) function, it’s a unique technology that supports both video signal and power supply transmission over the single coaxial cable.
- No need to use separate cable and power supply for video surveillance system.
- Long transmission distance—5C-2V: 500M / 3C-2V: 300M (PoC Receiver Unit SW1 Turn On)
- Automatically actives IR LED: Below 10Lux
Model
AHDC842AX4.2
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue-AHDC842AX | 2017-08-23 | 78KB | |
| Installation Guide | AHDC842AX4.2 Installation Manual | 2017-08-17 | 732KB |
