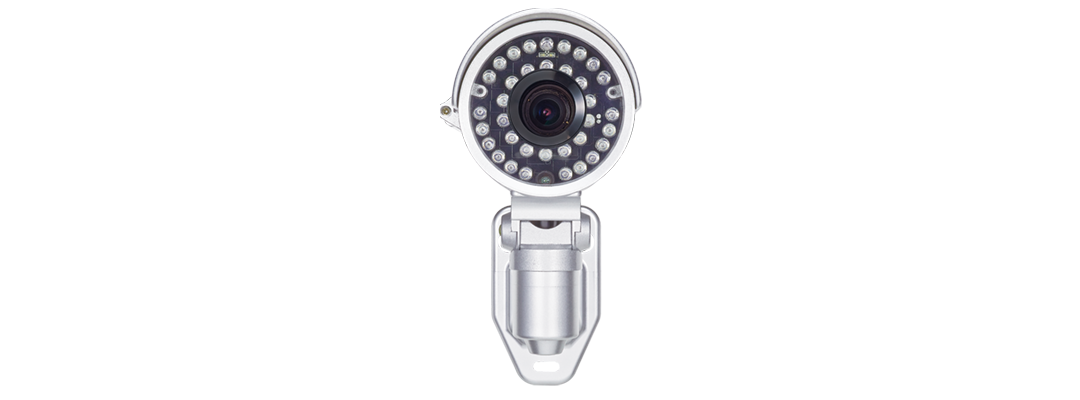

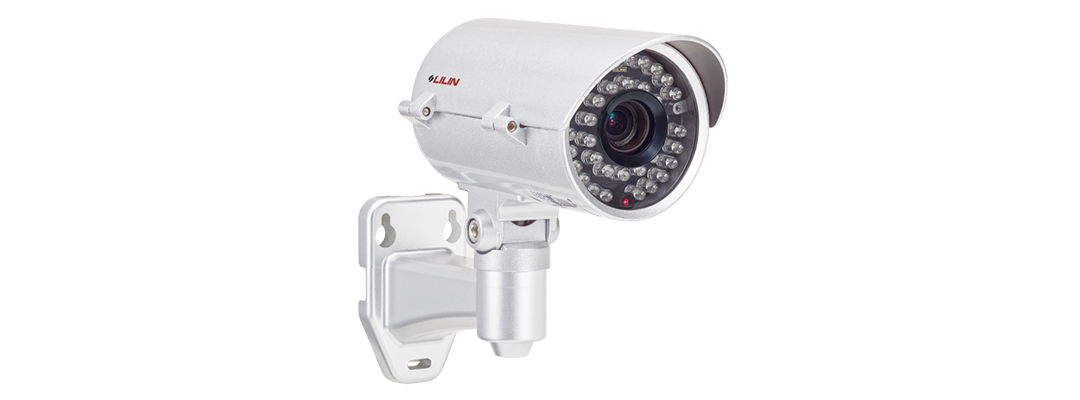

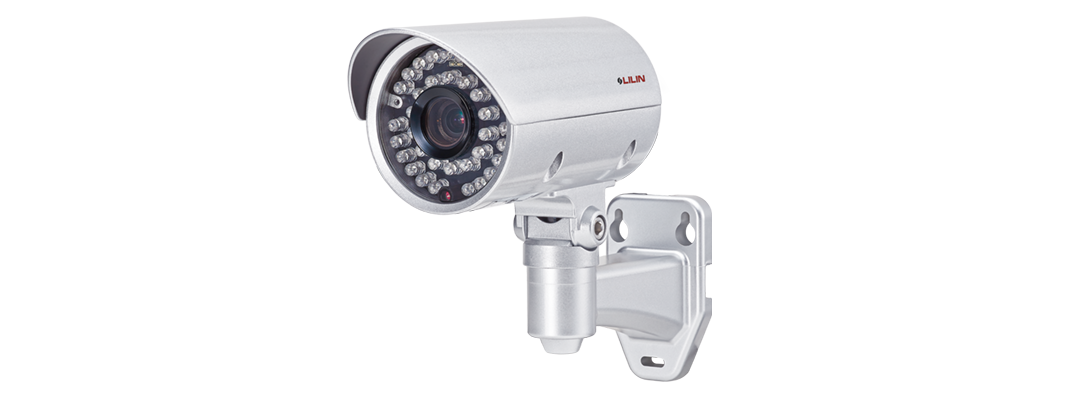

D/N 1080P AHD VARI-FOCAL IR CAMERA
Model：AHD702AX4.2 (Discontinued)
- Video Output: AHD 1080P / AHD 720P / TVI / CVI / CVBS
- AHD Cameras transmit data that is not encoded resulting in no process and no delay real time and complete transmission.
- Long transmission distance–Coaxial cable (3C/5C): 300M
- Seamless compatibility with the standard Analog equipment
- Automatically actives IR LED: Blow 10Lux
- UTC function (AHD-Coaxial protocol)
Discontinued date
- 2021.05.14
Alternative models
- AHD 5MP Analog camera
Model
AHD702AX4.2 (Discontinued)
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue AHD702AX4.2 | 2020-02-14 | 920KB | |
| Installation Guide | AHD702A3.6/6, AHD702AX4.2,AHD705A3.6/6, AHD705AX4.2 Installation Guide | 2019-10-05 | 2,558KB | |
| A&E | AHD702AX4.2 A&E | 2019-01-02 | 278KB | |
| Firmware | Firmware 2.6.90 , FR33C2 / FR3362 | 2017-11-24 | 21,199KB | |
| Firmware | Firmware 1.4.94 , ZD2322, ZD6122, ZR2322, ZR6122, ZR7424/8 | 2017-02-15 | 21,420KB | |
| Firmware | Firmware 1.4.76 , IPC0422E | 2016-05-18 | 20,193KB | |
| Firmware | Firmware 1.4.66 , IPD2122, IPD2220, IPD2322, IPD6122, IPD6220, IPG1022,IPR2122,IP2322,IPR2522,IPR320,IPR424/8, IPR6122, IPR722, IPR7424/8, IPR7722, IPR7922 | 2016-03-07 | 20,325KB | |
| Firmware | Firmware 1.4.70 , IPC0122 | 2016-02-23 | 20,326KB | |
| Firmware | Firmware 1.1.24 | 2014-09-11 | 23,189KB | |
| Firmware | Firmware 1.0.60 , ZD2322, ZD6122, ZR2322, ZR6122, ZR7424/8 | 2014-02-27 | 19,273KB | |
| Firmware | Pro Series 3MP Firmware 1.1.18 , IPD6132 ,IPG1032 , IPR2132 | 2014-02-20 | 20,813KB |
