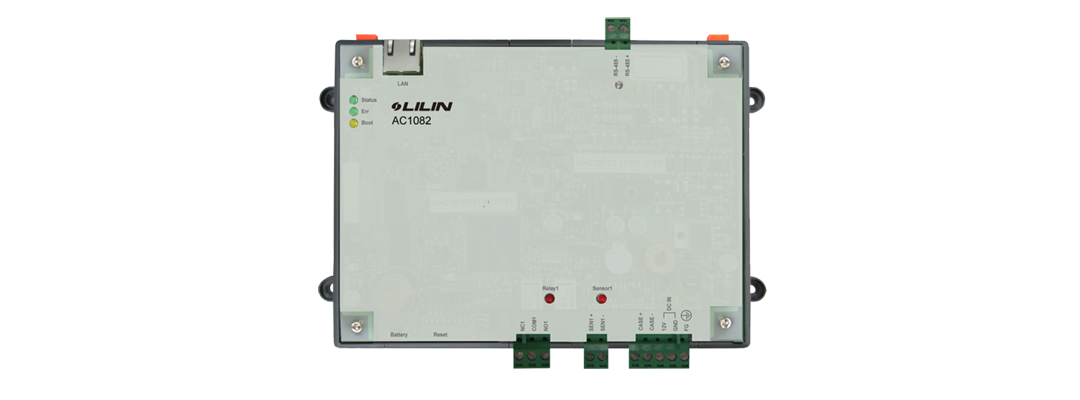

TCP/IP Multi Door Control Panel
Model：AC1082
- Web management via LILIN Access Control System.
- 2-way control: Up to 8 doors. (It needs to connect to ACW1012)
- Built-in 2 inputs to connect to fire and door closure detection sensors.
- Built-in 1 relay output to connect to an alarm output device.
- Stores 20,000 cardholders.
- Stores events up to 80,000 during offline.
- APB (Anti-PassBack): To prevent the cardholders double enter or exit a door with one valid card.
- Duress code: Input a specific code to open the door and send an alarm to the security center.
- Built-in RTC (Real Time Clock) function ensures accurate date/time.
- Built-in H/W watchdog to keep controller to be available.
- Easy installation & maintenance design.
Model
AC1082
Video performance
Low Light Mode
0.5 Lux at F1.2 (Color);0.1 Lux at F1.2 (B/W)
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Power
Power consumption
DC12V, 7.2W / PoE, 8W
PoE
IEEE802.3af
Power supply
DC12V ±10%
Power over Ethernet (IEEE 802.3af compliant)
Sensor
Sensor type
1/2.3-inch CMOS
Total sensor pixels
4072 (H) x 3046 (V) = 12,403,312 pixels
With Infrared
0.0 lux
2D WDR
Off / Auto / x2 / x3/ x4 (by normal mode)
Certifications
CE
Yes, EMI CLASS A
FCC
Yes, EMI CLASS A
Environmental
Operating temperature
-25℃ to 50℃ (-13℉ to 122℉)
PC requirement
CPU
Intel Core 2 Duo E6400 2.13GHz or above
RAM
2GB or above, Independent Display Card
OS
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
| Classification | Description | Date | File Size | Downloads |
| Catalogue | Catalogue AC1082 | 2020-04-21 | 614KB | |
| Brochure | Access Control System Brochure | 2019-03-22 | 3,533KB | |
| Manual | Multi Door Control panel Installation Guide For Model : AC1082 | 2019-01-22 | 474KB |
